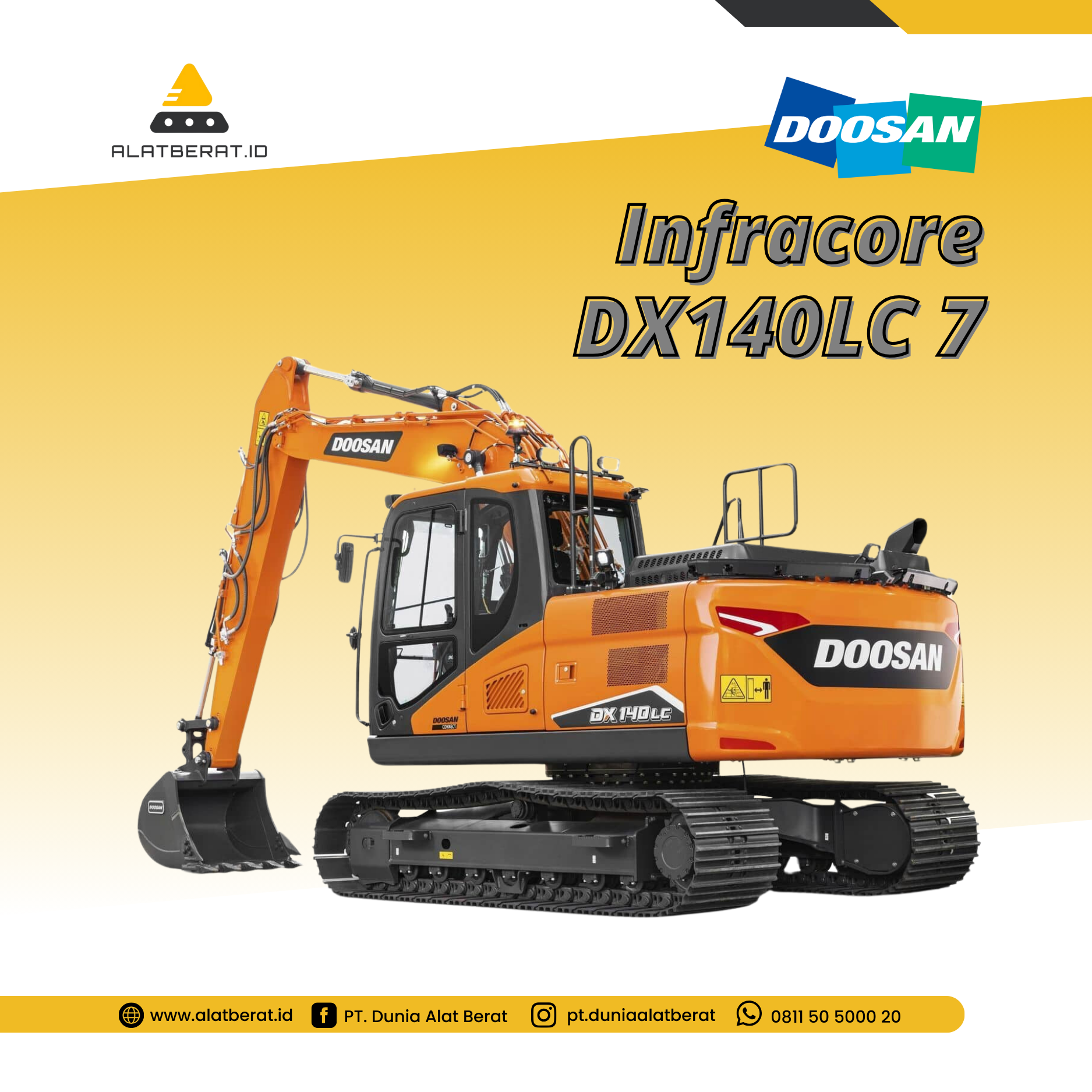

DX140LC-7
The new DX140LC-7 14.6 tonne and DX140LCR-7 15.9 tonne crawler models.
Both excavators are now powered by the Doosan D34 4-cylinder Stage V
diesel engine providing 87.2 kW (117 HP) of power at 2000 RPM
RATED POWER: 48 hp @2,250 rpm
LIFTING HEIGHT: 3,000 mm
Machine Specs
| Maximum power |
115 HP |
| Operating weight |
14.400 kg |
| Bucket capacity |
0.51 m |
| Emission standard |
Stage V |
| Engine |
Doosan G2 D34 |
| Engine power |
86 kW / 115 HP @ 1800 RPM |
| Main pumps max flow |
2 114 l/min |
| Maximum swing speed |
10.13 rpm |
| Maximum swing torque |
4888 kgfm |
| Travel speed (low - high) |
2.9 - 4.7 km/h |
| Maximum traction |
15.200 kg |
| Maximum gradeability |
35 / 70% |
