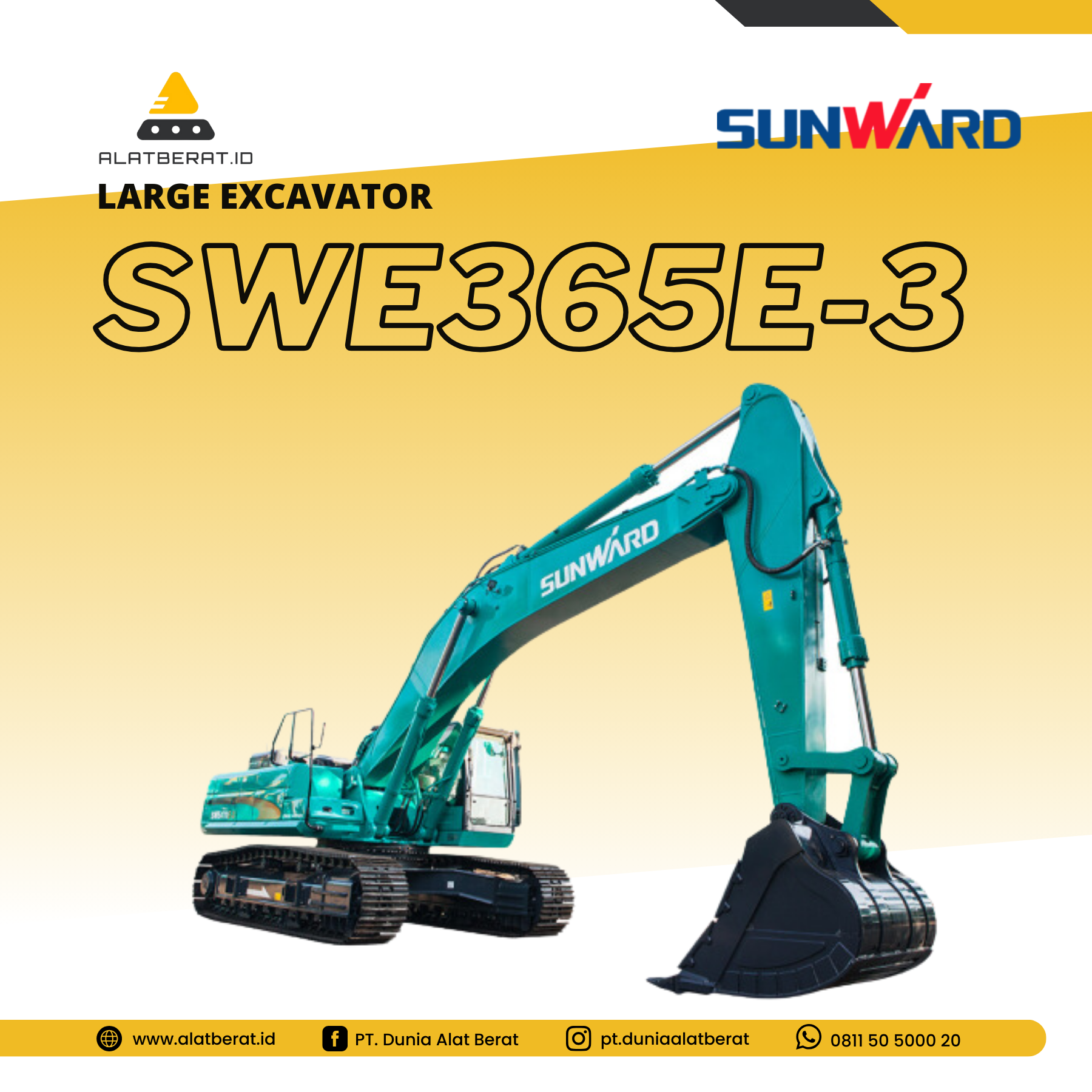

| Unit | Model | Cummins QSL9 |
| Type | Four-stroke, supercharging, inter-cooling and direct injection |
| Air suction | Turbocharging and air cooling |
| Cylinder diameterstroke | 6 |
| Displacement | mmmm | 114X145 |
| Rated power | L | 8.9 |
| Maximum torque | kW/rpm | 222/2100 |
| Number of cylinders | N.m/rpm | 1505/1400 |
| Hydraulic Unit | Hydraulic pump |
| Type | Dual-tandem plunger pump with variable displacement |
| Discharge of main pump | L/min | 2X324 |
| Discharge of pilot pump | L/min | 1X30 |
| Maximum pressure |
| Oil circuit of working unit/supercharging | MPa | 32.4/34.3 |
| Slewing oil circuit | MPa | 26 |
| Traveling oil circuit | MPa | 34.3 |
| Pilot oil circuit | MPa | 3.9 |
| Hydraulic Oil Cylinder | Number of cylinders - cylinder diameter arm diameter stroke |
| Boom oil cylinder | 2-150mm100mm1530mm |
| Arm oil cylinder | 1-170mm120mm1785mm |
| Bucket oil cylinder | 1-150mm100mm1193mm |
| Rotary System | Driving mode | Hydraulic drive |
| Swing motor | Axial plunger motor |
| Parking brake | Hydraulic disc brake |
| Rotating speed | rpm | 9.1 |
| Working Weight and Specific Pressure | The working weight includes a 6,500 mm HD type boom,
a 2,900 mm HD type arm, an operator, lubricant, coolant,
fuel and other standard equipment. |
| Working weight | kg | 36200 |
| Width of track link | mm | 600 |
| Ground specific pressure | kPa | 67.1 |
| Traveling System | Driving mode | Hydraulic drive |
| Travel motor | 2 two-speed transmission axial piston motor |
| Parking brake | Hydraulic disc brake |
| Traveling speed | km/h | 3.6/5.8 |
| Traveling traction | kN | 307 |
| Maximum gradeability | 70% (35) |
| Lower Traveling Frame | Intermediate frame | HD type and X-shaped frame |
| Crawler frame | HD type box beam structure |
| Number of crawler sections | 248 sections |
| Number of carrier rollers | 2X2 |
| Number of thrust rollers | 2X9 |
| Caterpillar track guide mechanism | 2X2 |
| Coolant and Lubricant | Fuel tank | L | 650 |
| Hydraulic oil tank | L | 320 |
| Radiator | L | 28 |
| Engine oil | L | 28 |
| Traveling reducer oil | L | 2X8 |
| Slewing reducer oil | L | 10.5 |
| Bucket | Bucket capacity (ISO standard) | m | 1.6 | 1.8 | 2 |
| Bucket width (including side blade plate) | mm | 1340 | 1480 | 1600 |
| Bucket weight | kg | 1642 | 1820 | 1900 |
| Number of bucket teeth | 5 | 5 | 5 |
| Configurations |
| 2.9m standard arm | Standard Configurations | O | O |
| 3.26m arm |
| O |
|
| 2.67m arm | |
|
|
| Working Range | Boom length | mm | 6500 |
| Arm length | mm | 2900 | *3260 | *2670 |
| Max.digging height | mm | 10390 | 10645 | 10220 |
| Max.unloading height | mm | 7310 | 7530 | 7170 |
| Max.digging depth | mm | 7095 | 7450 | 6865 |
| Digging depth (2.44m; horizontal) | mm | 6925 | 7300 | 6685 |
| Max.vertical digging depth | mm | 5825 | 6380 | 5470 |
| Max.digging reach | mm | 10940 | 11300 | 10715 |
| Max.ground digging reach | mm | 10725 | 11080 | 10500 |
| Min.front swing radius | mm | 4460 | 4380 | 4480 |
| Digging force of bucket (ISO supercharging) | kN | 253 | 253 | 253 |
