Nowadays, there are more and more small
and medium-sized road projects for which we need to frequently change
the location of asphalt mixing plant. In order to meet the demands of
our clients, we developed different types of mobile asphalt: drum type
(MDHB series); compulsory type (QLB series); road repairing type (QLZ
type).
For
drum type, we use drying drum to dry aggregates and mix them with
bitumen. No ore powder will be used. It is usually used for small and
low-level road construction. Capacity available: 20t/h to 100t/h.
For
compulsory type, there is mixer to mix all the materials like stones,
ore powder and bitumen. All materials will be weighed before being
discharged into mixer to ensure the accuracy of the asphalt formula.
Usually, it is used for small and medium-sized road construction.
Capacity available: 10t/h to 80t/h.
For
road repairing type, we reuse the asphalt on broken road and repair the
road. It is widely used for all kinds of road repairing. Capacity
available: 3t/h and 6t/h.

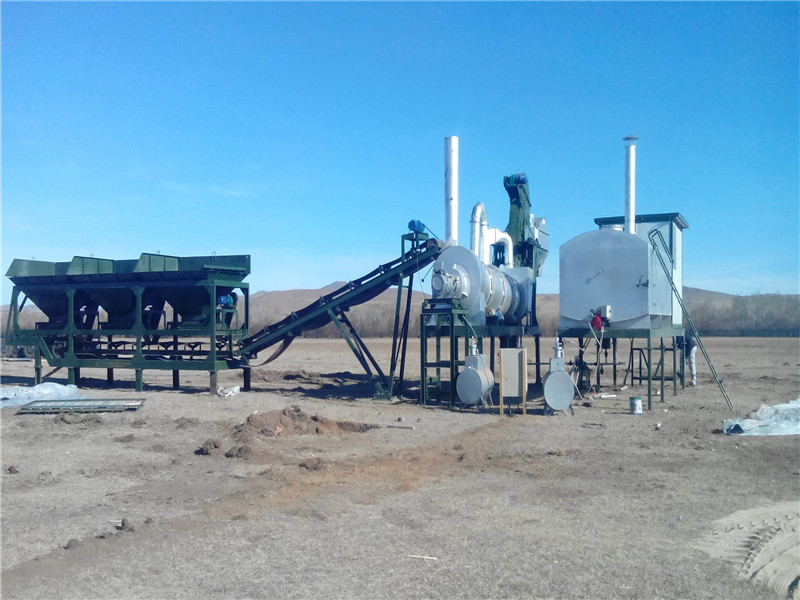

Specification and pictures of drum type mobile asphalt plant
Model | MDHB20 | MDHB40 | MDHB60 | MDHB80 | MDHB100 |
Production Capacity (T/h) | 20 | 40 | 60 | 80 | 100 |
Mixing Type | Continuous | Continuous | Continuous | Continuous | Continuous |
Dust Remove Effect (mg/Nm3) | 100 | 100 | 100 | 100 | 100 |
Fuel Consumption (kg/t) (Oil) | 5.5-7 | 5.5-7 | 5.5-7 | 5.5-7 | 5.5-7 |
Fuel Consumption (kg/t) (Coal) | 10-13 | 10-13 | 10-13 | 10-13 | 10-13 |
Aggregate Weighing Accuracy(%) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
Bitumen Weighing Accuracy(%) | 1 | 1 | 1 | 1 | 1 |
Total Power (kw) | 50 | 75 | 128 | 165 | 200 |
3. Specification and pictures of road repairing type mobile asphalt plant
Model | QLZ-3 | QLZ-6 |
Production capacity | 2-3 t/h | 4-6 t/h |
Capacity of drying and mixing drum | 1000kg | 2000kg |
Max. weight of recycled asphalt lump | Less than 2 kg | Less than 2kg |
Rotating speed of drying and mixing drum | 7-10 round/minute | 7-10 round/minute |
Heating time for one batch of material | 15 to 20 minutes | 20-30 minutes |
Discharging material temperature | 120-160 | 120-160 |
Fuel for heating | gas | gas |
Diesel engine power | 20HP | 12.7kw |
Diesel engine oil consumption | 230 g/hp.h | 244.8 g/kw.h |
Loading hopper capacity | 400kg | 700kg |
Overall size | 4580mm2170mm2470mm | 6034mm*3040mm*2350mm |
Total weight | 3t | 5t |
