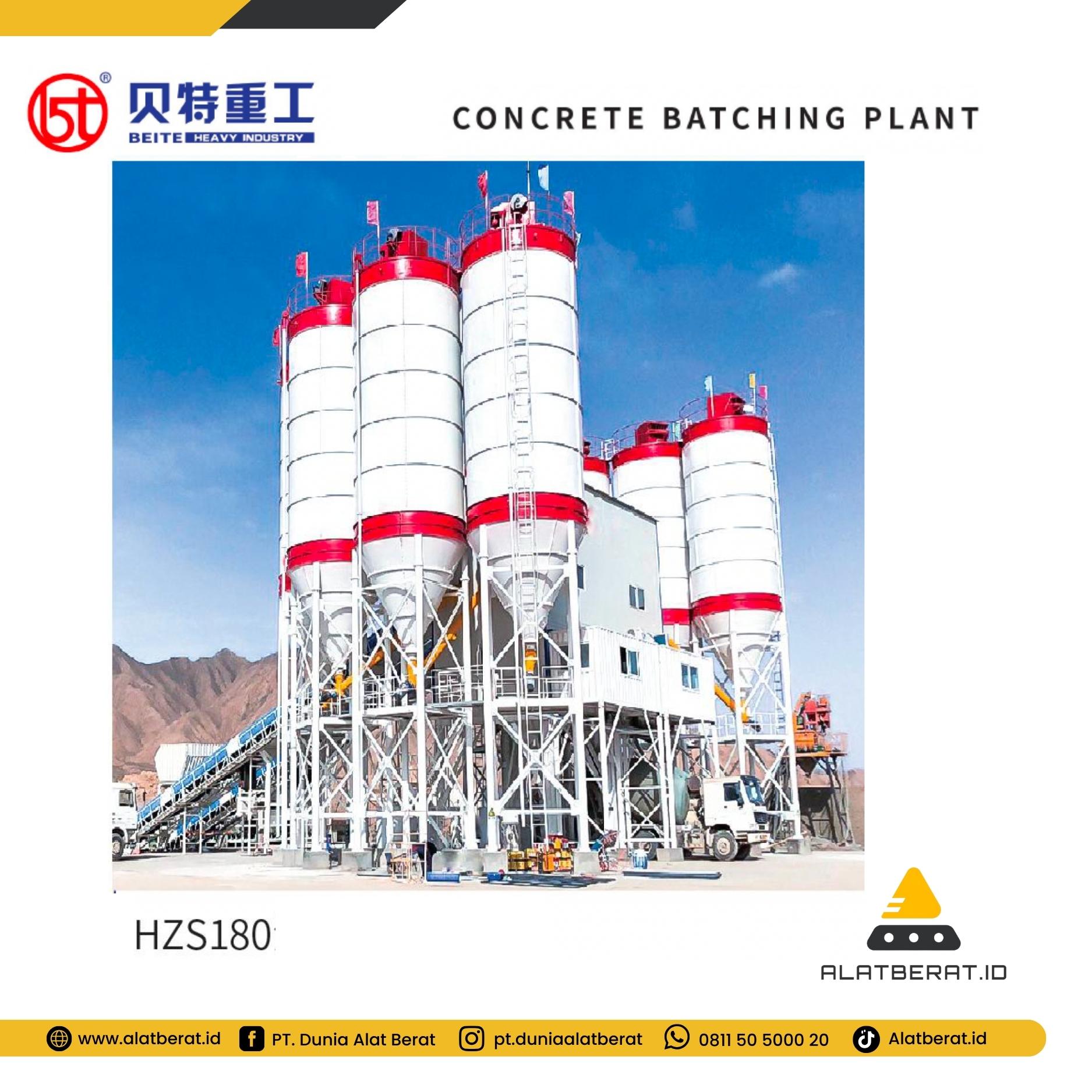

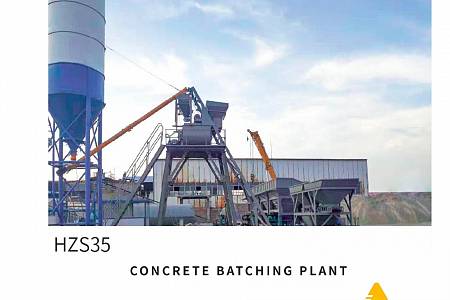

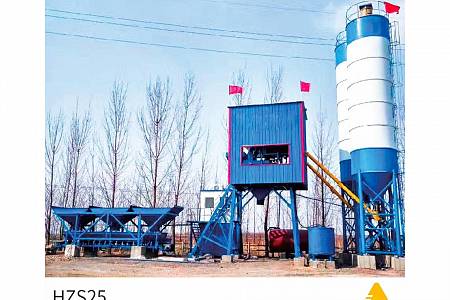

A concrete batching plant is a specialized equipment designed for the production of concrete mixtures and finds extensive use in large and medium-sized projects such as water conservancy, electric power, and bridge construction.

The concrete batching plant primarily comprises several major systems and auxiliary facilities, including the mixer, weighing system, conveying system, storage system, and control system.

Key Features:

High-Efficiency Mixing System:

• The mixer is expertly welded by a robotic welding system, significantly enhancing production quality and efficiency.

• The imported sealing system ensures the mixer's quality and efficiency.

High-Quality Batching System:

• Utilizes top-quality components from well-known domestic brands, offering high reliability.

• Boasts a solid and stable structure.
• Simultaneously weighs four types of aggregates, greatly improving efficiency.
• Achieves high precision through a rough-fine weighing process.
• Features a screw tension device at the end for easy belt tension adjustment.
• Equipped with a cover at the head of the belt conveyor to prevent spillage effectively.
• Vibrators in aggregate hoppers and scales ensure rapid weighing and discharge.

High-Stability Belt Conveyor:

• The enclosed conveyor system is dust-proof, anti-falling, and environmentally friendly.

• Dual platforms facilitate convenient maintenance.
• The sky-blue rain-proof shed enhances the plant's aesthetics.
• Automatic centering by forward-inclined rollers effectively prevents deviations.
• An emergency-stop pull rope ensures safe operation.
• Centralized collection of spilled materials simplifies cleaning.

High-Precision Weighing:

• Components for weighing, control, and signal conversion are sourced from world-renowned brands.

• Load cells offer high precision in measurement.
• Various materials are weighed individually (or cumulatively) for stable performance and accurate results.
• Domestic famous pneumatic butterfly valves provide good tightness and reliable operation.
• The rough-fine weighing process for water and additives ensures high accuracy.
