Specifications

• Type: hydraulic breaker
• Application: Excavator
• Certification: CE
• Condition: New

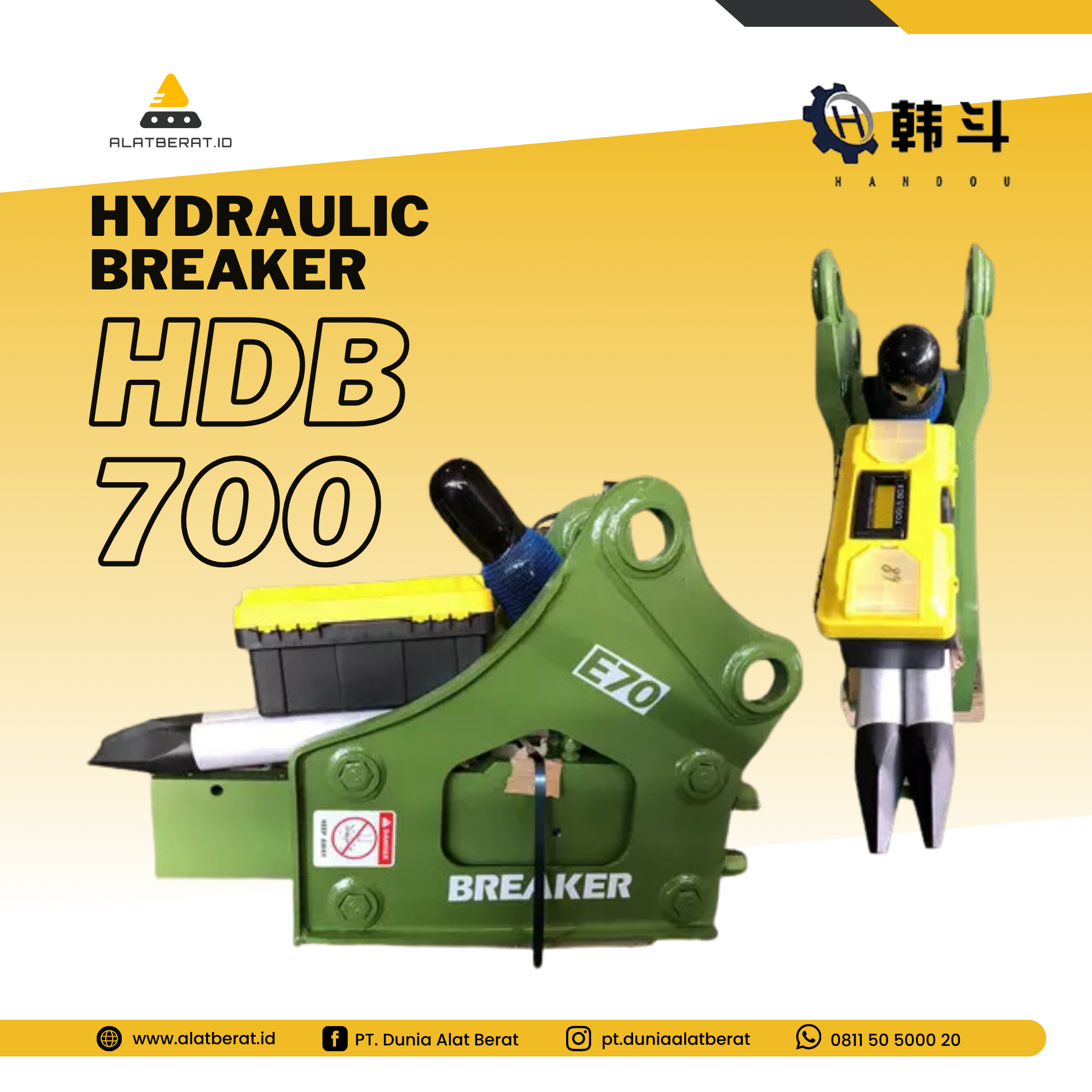

• Model No: HDB700
• Oil Seal: Original NOK
• Cylinder Material: 20CrNiMo
• Chisel: 42CrMo

Product Description

• Hydraulic breakers are mainly for construction of roads,bridge and mines,construction of ditchs and asphalt pavements,coal mine,quarry and broken stone,quarry and asphalt pavements. Side Type Simple and reliable design can suit for excavator very well. High efficiency of hydraulic system with strong impact ower. Easy maintenance with half-open frame tructure. Top Pencil Type Adopted advanced technology of oill pressure control and fluid micro-adjustment makes stronger impact and its persistence. Can enlarge the scope of demolition with ong overall length.




  Light Type Hydraulic Breaker
  Category	Unit	HDB400	HDB450	HDB530	HDB680	HDB750	HDB850	HDB1000
  Body weight	kg	50	70	90	155	210	280	480
  Total weight	kg (side*top*silence)	70/72/100	95/95/129	140/150/155	260/343/360	330/405/450	550/633/730	760/866/1007
  Size	mm (side) (top) (silence)	918*176*360	1090*215*435	1178*230*500	1365*290*770	1515*295*735	1735*390*910	1900*390*910
  		1086*156*189	1235*176*200	1344*235*370	1681*350*486	1706*390*486	2120*438*570	2387*450*570
  		1190*260*295	1331*260*295	1410*345*300	1660*328*486	1712*325*486	2070*435*570	2350*440*570
  Working flow rate	L/min	20-40	20-40	25-45	36-60	50-90	45-85	80-120
  Working pressure	Bar	90-120	90-120	90-120	110-140	120-170	127-147	150-170
  Imapct rate	bpm	700-1200	700-1200	500-1100	500-900	400-800	400-800	400-650
  Hose diatmeter	inch	1/2	1/2	1/2	1/2	1/2	1/2	3/4
  Chisel diameter	mm	40	45	53	68	75	85	100
  Suitable carrier	ton	0.8-2	1.2-3	2.5-3	3-7	6-9	7-14	10-15

  Medium Type Hydraulic Breaker
  Model No.	Unit	HDB1350	HDB1400		HDB1550
  Body weight	kg	846	920		1092
  Total weight	kg (side*top*silence)	1655/1850/1898	1767/2052/2000		2218/2380/2450
  Size	mm (side) (top) (silence)	2423*500*1202	2480*590*1335		2640*590*1343
  		2900*560*710	2866*560*710		2897*600*750
  		2847*560*710	2790*560*700		3002*640*760
  Working flow rate	L/min	130-170	150-190		150-230
  Working pressure	Bar	160-185	165-195		170-200
  Imapct rate	bpm	400-650	400-800		250-400
  Hose diatmeter	inch	1	1		1
  Chisel diameter	mm	135	140		155
  Suitable carrier	ton	18-25	20-30		27-36

  Heavy Type Hydraulic Breaker
  Model No.	Unit	HDB1650	HDB1750	HDB1800	HDB1900
  Body weight	kg	1442	1930	2295	2520
  Total weight	kg (side*top*silence)	2750/3150/2900	3910/4103	4227/4322	4850
  Size	mm (side) (top) (silence)	2820*590*1375	3184*670*1670	3225*764*1576	3433*764*1635
  		3286*760*840	3212*760*920	3345*780*920
  		3337*654*840
  Working flow rate	L/min	200-260	210-280	280-350	280-350
  Working pressure	Bar	180-200	180-200	190-210	190-210
  Imapct rate	bpm	250-400	250-350	230-320	230-320
  Hose diatmeter	inch	1.1/4	1.1/4	1.1/4	1.1/4
  Chisel diameter	mm	165	175	180	190
  Suitable carrier	ton	30-45	40-50	45-55	50-60
