Distributor Hanfa HFJ260A Crawler Type Water Well Drilling Rig - ALATBERAT.ID

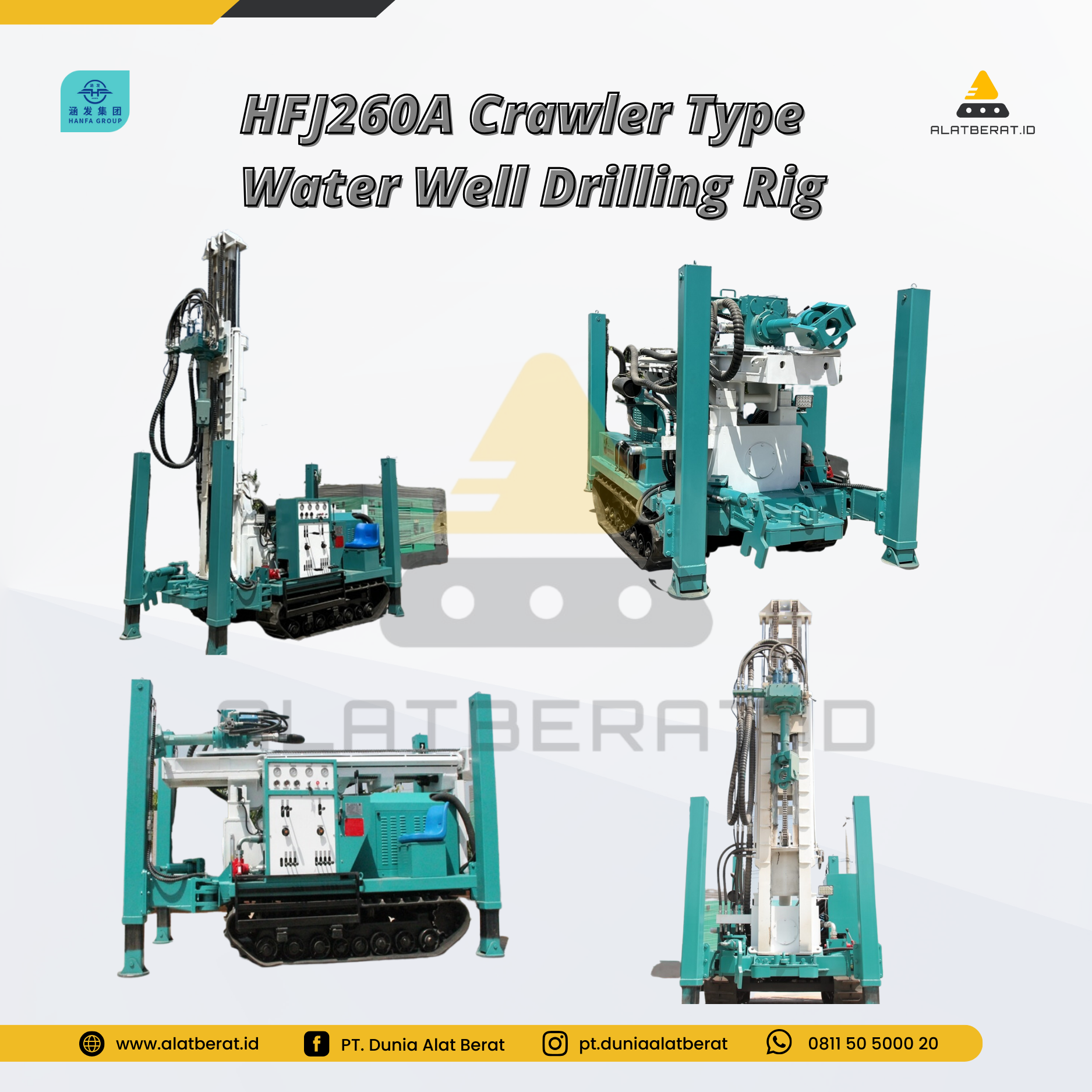

Hanfa HFJ260A Crawler Type Water Well Drilling Rig

Distributor Alat Berat Hanfa Drilling Rig di Indonesia

Specifications

Model		HFJ260A
Max. Drilling depth		260m
Drilling diameter		90-315mm
Working air pressure		1.7-3.0Mpa
Air consumption		17-35m3/min
Drilling rod length		3m
Drilling rod diameter		76/89mm
Hydraulic Cylinder	Pressurization	4T
	Lifting force	14T
	Lifting speed(up)	2.5m/min
	Push down speed	0.5-5m/min
Auxiliary Winch	Lifting speed	18m/min
	Lowering speed	35m/min
Max. rotation torque		4500-6500Nm
Rotation speed		0-50/70r/min(stepless)
Foam pump flow		20L/min(optional)
High hydraulic leg stroke		1.5m
Walking speed		2Km/h
Climbing capacity		30
Weight		5.4T
Dimension		390017002150mm
Power77		Yuchai 77.3kw
