Project

Parameter name

Unit

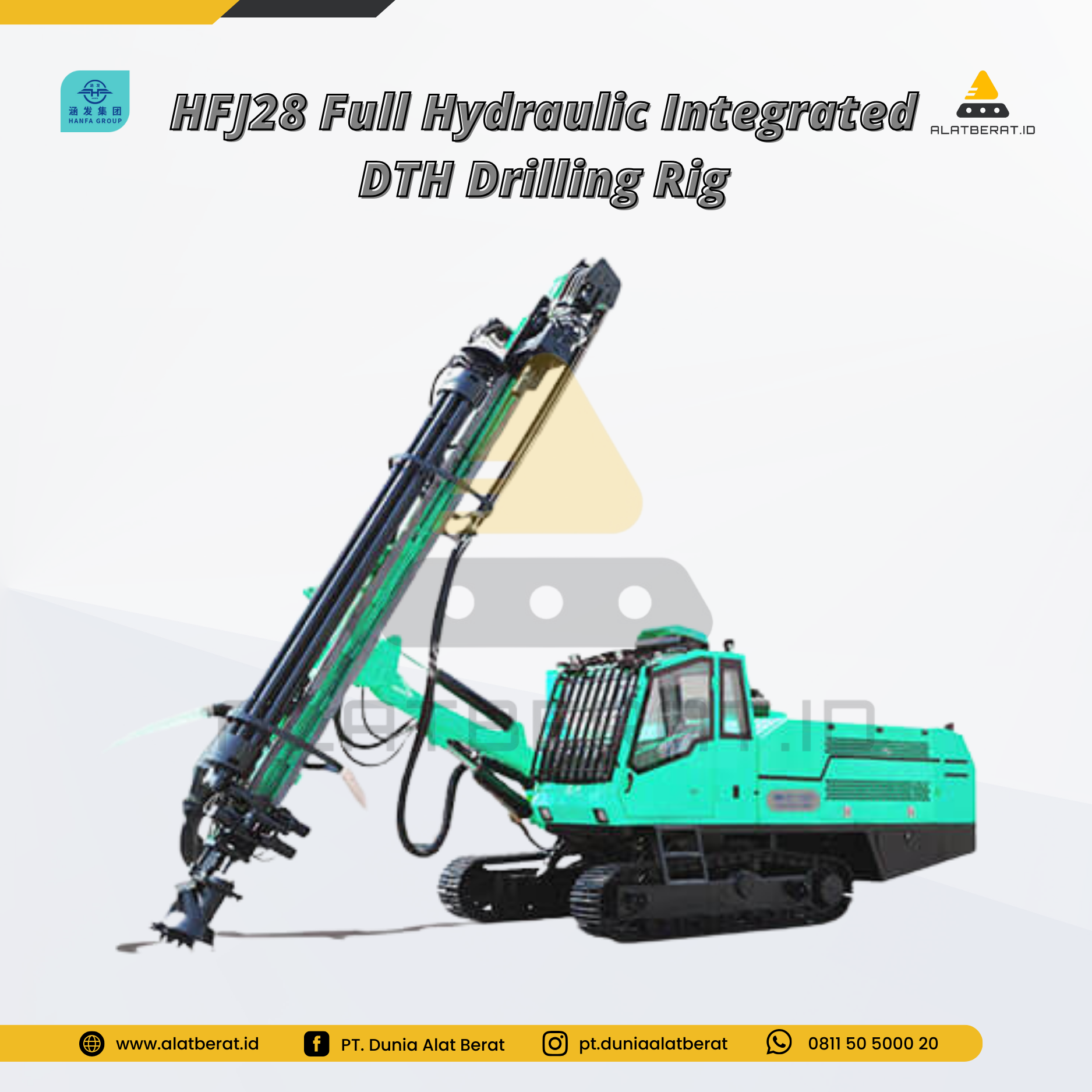

HFJ28

HFJ38

Body specifications

Total mass

kg

15000

25000

full length

mm

9920

9785

Full width

mm

2600

3200

Full high

mm

3300

3500

Bottom plate

Track length

mm

/

3646

Ground contact length

mm

/

2875

Track center distance

mm

/

2200 Total outside width 2700

Track width

mm

350

500

Ground clearance

mm

400

400

Track oscillation

10

10

Walking motor

/

Eaton

Walking speed

Km/h

2Low speed3high speed

1.8Low speed2.95high speed

Max. tractive force

KN

/

170

Grade ability

20

20

 Engine

Model

QSL8.9-C360-30

QSZ13-C450-30(Cummins)

Type

Water-cooled 6-cylinder EFI diesel engine

Rated power

Kw/RPM

264/2100

335/2100

Fuel tank capacity

L

450-500

760

  Hydraulic pump/valve

Main pump

/

Plunger variable load sensing pump

Main valve

/

Load sensing valve

Manufacturer

/

Rexroth

Air compressor

Model

Atlas Copco

Atlas Copco

Type

2-stage screw air compressor

2-stage screw air compressor(Dual power)

Working pressure

bar

20

20 Medium pressure    25 high pressure

Max. air delivery

m3/min

18.5

25.4

 Rotary motor

Hydraulic rotation unit

/

Double motorEaton

Rotation rate

rpm

0-85

0-70

Max. rotation torque

N.m

3300

3900

Feeding method

Motor drive + sprocket chain type

Fast feeding/lifting rate

m/ min

/

30

Feeding rate

m/ min

/

4.7

Max. lifting rate

m/ min

/

5.5

Feeding force

KN

12

0-30 Adjustable

Lifting force

KN

18

30

Advance beam

Length

mm

/

8500

Feeding stroke

mm

4840

5500

Feed extension

mm

1100

1600

Swing angle

/

Left 95right 35

Boom

Type

mm

/

With telescopic single straight arm (length 570)

Tilt angle

/

40(on) ,15(under)

Swing angle

/

Left (side of cab)9right31

 Drill pipe changer

Pipe diameter

mm

76

102/114

Pipe length

m

4

5

Drilling diameter

mm

90-152

138-235

Drilling depth

m

28

30

Pipe capacity

6+1

5+1

Hammer specs

4''/5''

5''/6''

Filter element quantity/specification

/

26

Collecting method

Full hydraulic dust removal

Dust cover

/

Fluctuate
