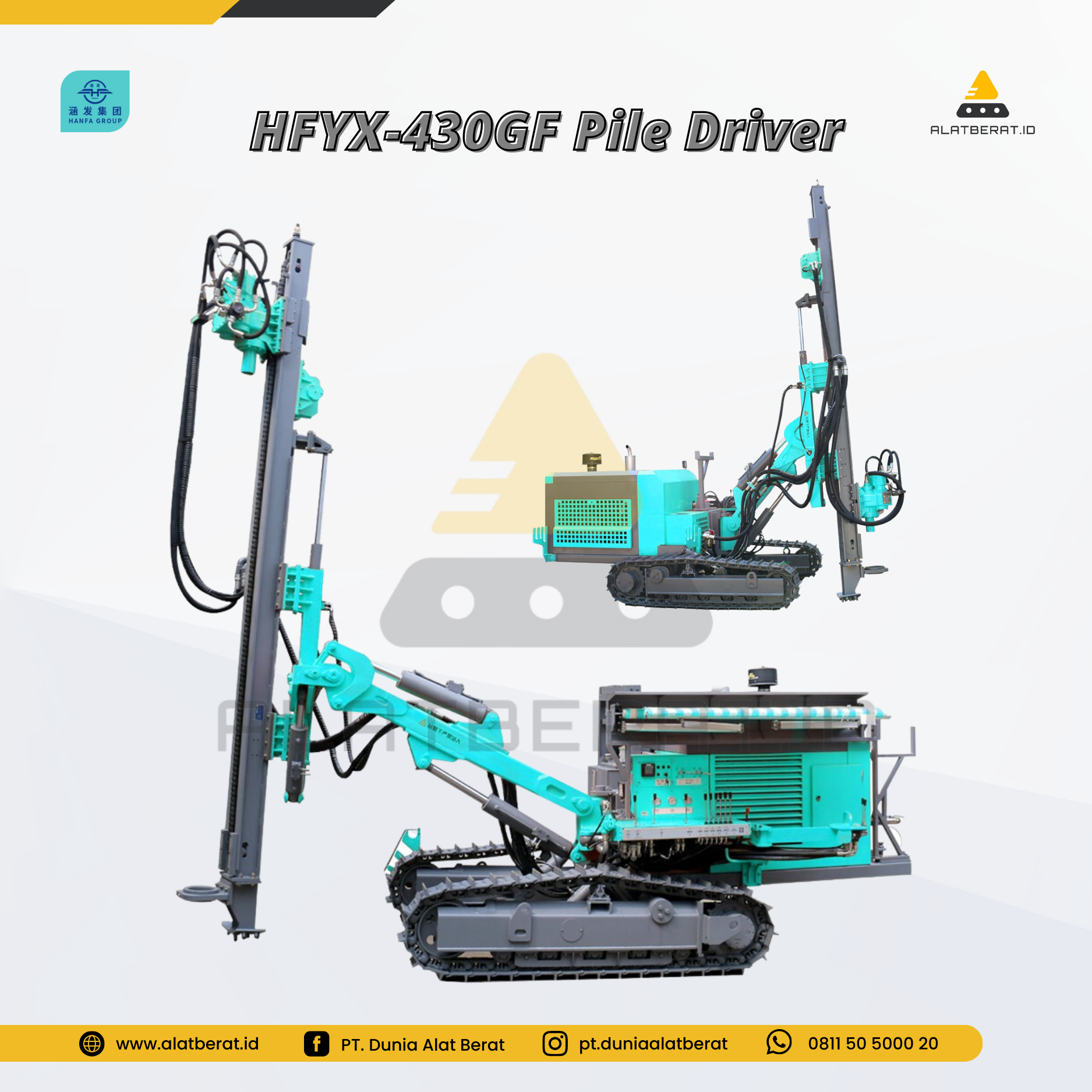

Hanfa HFYX-430GF Pile Driver

Distributor Alat Berat Hanfa Pile Driver di Indonesia
  1. Home
  2. /
  3. Hanfa HFYX-430GF Pile Driver

Specifications

Model of Drill Rig420GF430GF
Weight of Machine6100KG7000KG
Outer Dimensions7000x2280x2700 mm7200x2230x2700 mm
Supporting PowerYCF36-100 74kwYC4DK-100 73.5KW
Drilling HardnessF=6~20F=6~20
Drilling Diameter200-350mm200-350mm
Rotation Speed55-110 r/min36-105 r/min
Rotation Torque (MAX)8000N.m8000N.m
Pull up Force (MAX)25KN25KN
Method of FeedMotor ChainMotor Chain
Feed Stroke3875mm3875mm
Feed Force(MAX)25KN25KN
Working Air Pressure0.7~2.5Mpa0.7~2.5Mpa
Climbing Capacity3535
Ground Clearance310mm310mm
Tilt Angle of BeamOver180Over180
Swing Angle of Boomleft50right50/left15right95left50right50/left15right95
Swing Angle of Drill BoomUp41  Down31Up41  Down31
Leveling Angle of Track1010
