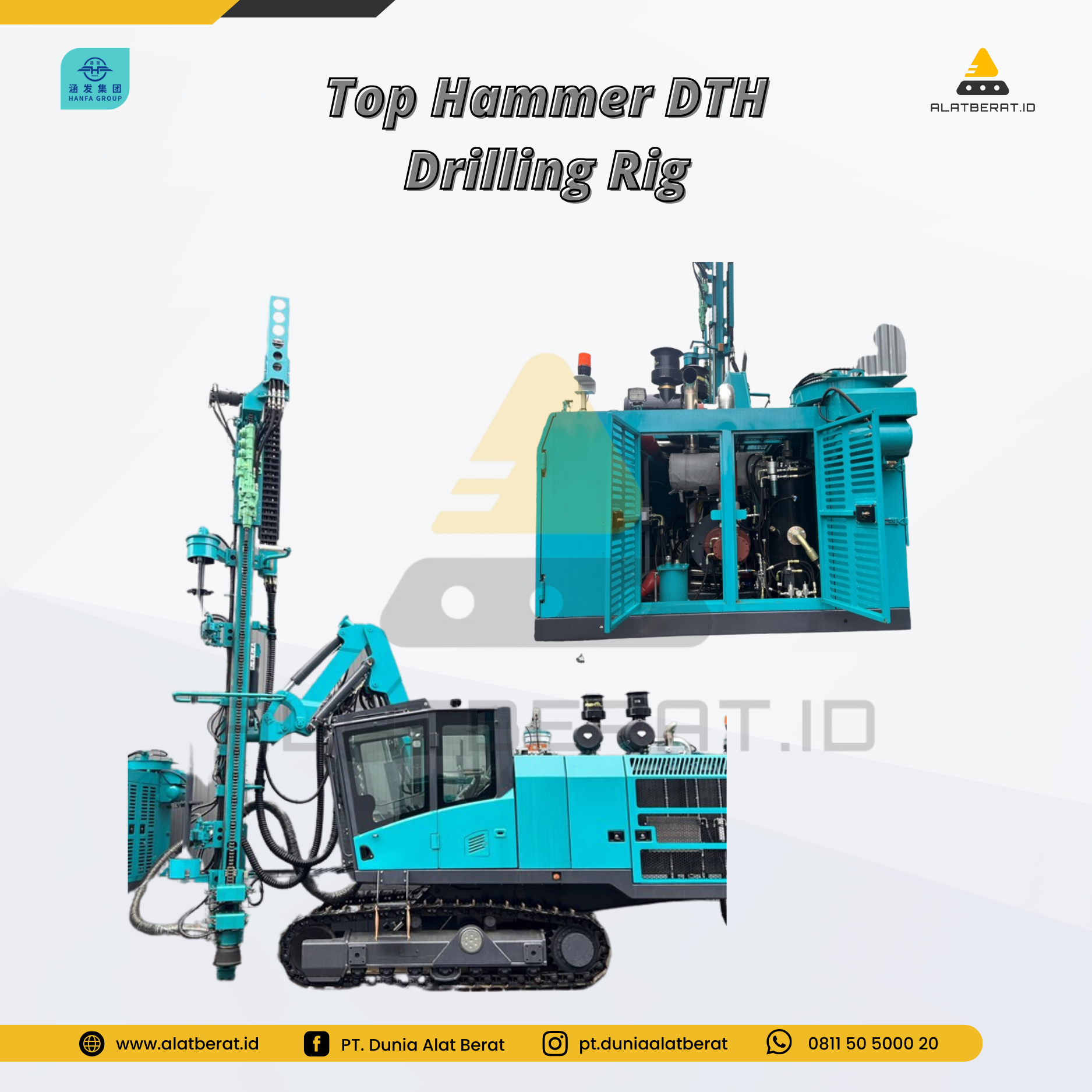

Distributor Hanfa Top Hammer DTH Drilling Rig

Specifications

ltem	Unit	HF89S
operation parameters
Drilling range	mm	76-115
Economic hole diameter	mm	76,89,102
Dill pipe specification	-	T45/T51
Drill pipe length	mm	3660
Drilling depth	m	24
Hydraulic rock drill
lmpactpower	KW	21
Slewingtorque	Nm	883
Slewingspeed	rpm	0-150
Engine
Brand	.	CUMMNS
Model	-	qsc8.3
Power	kW/rpm	179/2200
Fuel tank	L	45o
Air compressor
Working pressure	Bar	10
Displacement	mmin	10
Drill boom
Type	-	Folding arm
Lifting angle		70--10
Foldingangle		65~165
Swingangle		20--30
Propulsion
Total length of propukion beam	mm	7300
Compensation stroke	mm	1200
Forward tiltingargle		14o
Turringangle		-20~90
Maximum propulsion rate	m/s	o8
Maximum propulsion	kN	25
Traveling capability
aximum travcling speed	km/h	4.2
Max.traction	kN	1oo
Gradeability		25
Swingangle of crawler rame		-7-12
Chassisground cleararce	mm	4oo
Dimension
weight	kg	15000
LW H(Working	m	922.68.6
Lw H(Transportation)	m	1122.63.5
