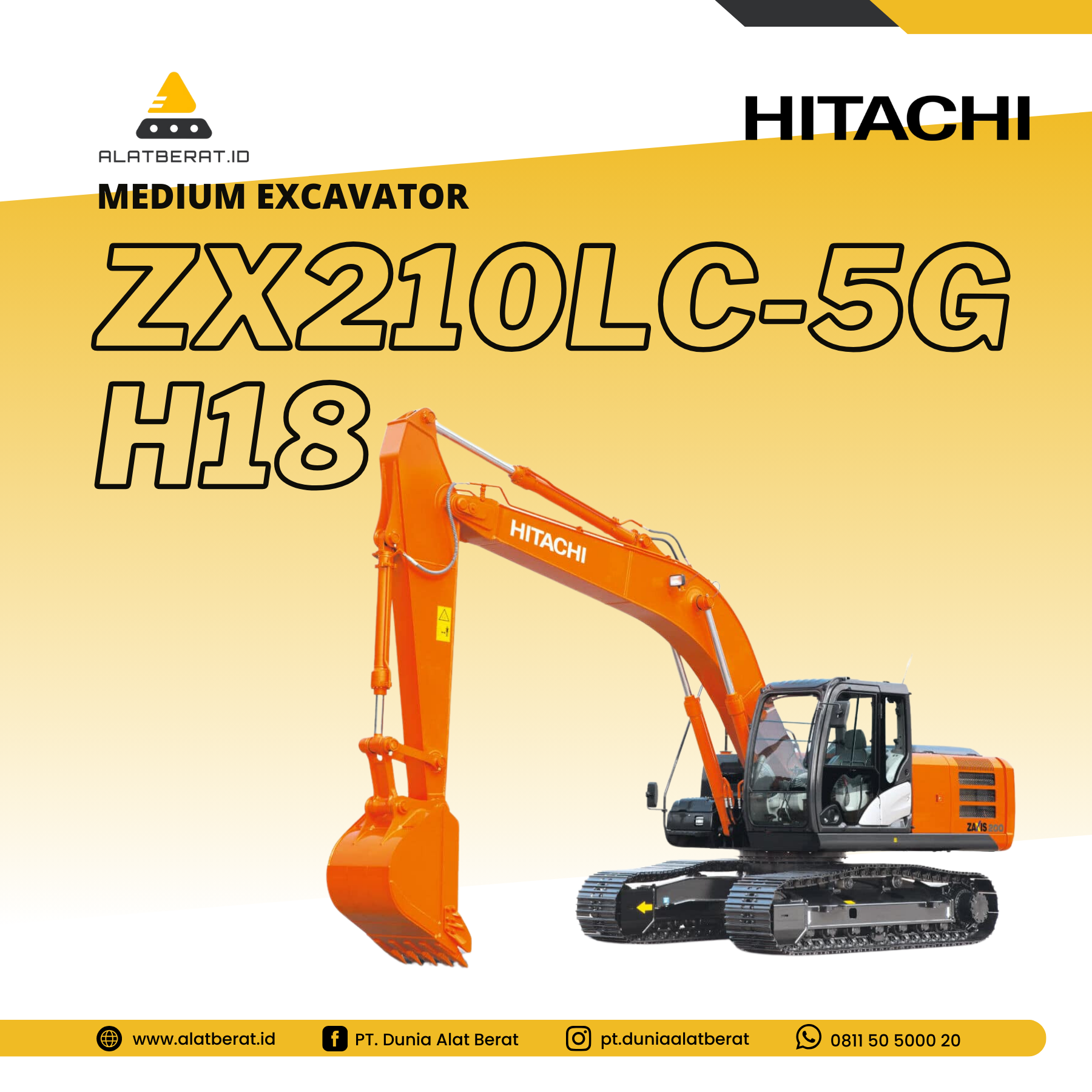

SPECIFICATIONS ZX210LC-5G TYPE H15 / H18 SUPER LONG FRONT

ENGINE

Model ........................ Isuzu CC-6BG1T

Type .......................... 4-cycle water-cooled, direct injection

Aspiration .................. Turbocharged, intercooled

No. of cylinders ......... 6

Rated power ISO 9249, ........ 125 kW (168 HP) at 2 100 min-1 (rpm)

Maximum torque ....... 637 Nm (65 kgfm) at 1 800 min-1 (rpm)

Piston displacement .. 6.494 L

Bore and stroke ......... 105 mm x 125 mm

Batteries .................... 2 x 12 V / 88 Ah

Hydraulic Pumps

Main pumps .............. 2 variable displacement axial piston pumps

Maximum oil flow .. 2 x 212 L/min

Pilot pump ................. 1 gear pump

Maximum oil flow .. 33.6 L/min

Hydraulic Motors

Travel ........................ 2 variable displacement axial piston motors

Swing ........................ 1 axial piston motor

Relief Valve Settings

Implement circuit ....... 34.3 MPa (350 kgf/cm2)

Swing circuit .............. 26.8 MPa (273 kgf/cm2)

Travel circuit .............. 34.3 MPa (350 kgf/cm2)

Pilot circuit ................ 3.9 MPa (40 kgf/cm2)

Power boost ............. 38.0 MPa (388 kgf/cm2)

Travel Device

Each track driven by 2-speed axial piston motor.

Parking brake is spring-set/hydraulic-released disc type.

Automatic transmission system: High-Low.

Travel speeds ............. High : 0 to 5.5 km/h Low : 0 to 3.5 km/h

Maximum traction force .. 203 kN (20 700 kgf)

Gradeability ................ 70% (35 degree) continuous
