Maximum performance

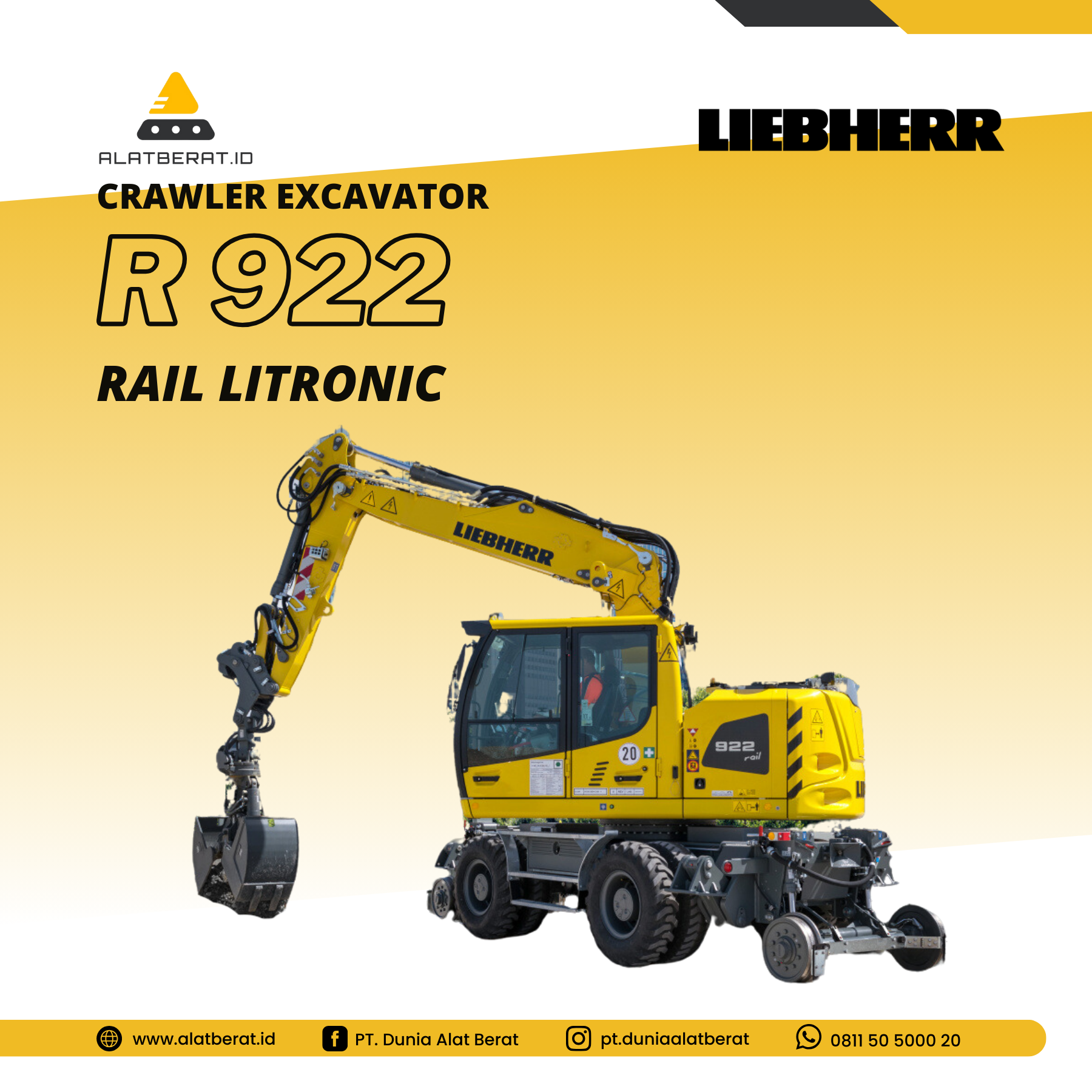

A sophisticated machine concept is essential to deliver optimal performance in payloads, stability and flexibility. The new A 922 Rail generation delivers continued, familiar, intelligent superstructure design with a separate boom cylinder mounting and a solid rail chassis to ensure reliable stability and maximum load capacity for track operations. In addition to standard ballasting, a revised heavy ballast weight with a reduced rear swivel radius of 2,000 mm is now also available. The maximum payloads can also be increased by a Power Lift mode and an optional 4-point support.

Liebherr undercarriage

The A 922 Rail is available with a range of undercarriage versions with different gauges, rail wheels and suspension systems enabling it to be used on tracks anywhere in the world. An independent variable-displacement pump for the rail chassis delivers outstanding traction and reliable drive power at all times. The permanent level regulation of the rail chassis enables the machine to travel smoothly on rails.

Powerful hydraulic concept

The design concept of the A 922 Rail Litronic was developed to deliver maximum performance and flexibility. The new 120 kW/163 HP construction machinery engine and the perfectly coordinated hydraulic system enables the machine to achieve even higher working speeds with the familiar fluid equipment movements. To achieve greater performance when using attachments, the flow volume of the time-tested double variable-displacement pump (with independent regulating circuits) has been increased to 2 x 220 l/min.

Furthermore, the capacity can also be used as the sum of both hydraulic circuits (for example for pile-driving) as in the past. A second high pressure circuit means that three hydraulic functions can be controlled directly on special attachments (for example on tamping devices).

Working with precision

Many years of experience in the development and production of hydraulic excavators and systems allow us to harmonize the components perfectly. As a result, Liebherr hydraulic excavators feature rapid, fluid movements combined with high precision.
