Operating Weight:
5.85 ton | Rate power:
36.2/2100 | Bucket Capacity:
0.22m |

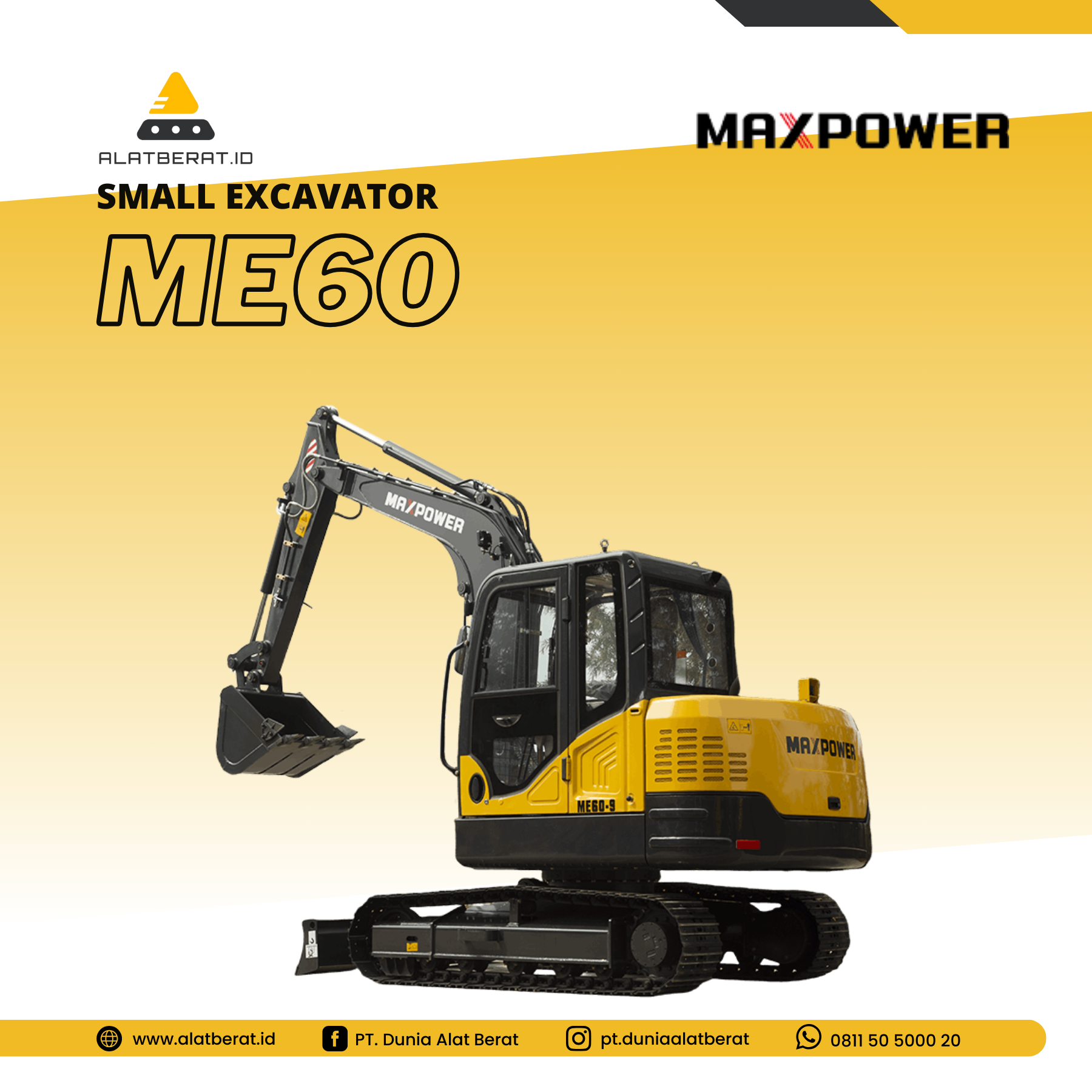

ME 60.9 Excavator compact structure, fast action speed and comfortable operation;
Original Japanese Yanmar engine: automatic idle function with low energy consumption.
Load sening hydraulic system: realize precision control on different executive elements, with good controllability and high work efficiency.
New comfortable cabin, with AC, radio and USB joint, larger vision.
Excavator quick attach is optaional, easy to exchange different tools.
| Weight (T) | 5.85 |
| Bucket capacity (m3) | 0.22 |
| engine model | YANMAR 4TNV94L |
| Power (kw/r/min) | 36.2/2100 |
| Fuel tank volume (L) | 100 |
| Walking speed (km/h) | 4.2/2.2 |
| Rotation speed (r/min) | 9.5 |
| Gradeability(%) | 70 |
| Bucket Digging Force (KN) ISO | 39 |
| Ground specific pressure (KPa) | 33.5 |
| Hydraulic pump model | HP5V76 |
| Maximum flow (L/min) | 160 |
| Working pressure (MPa) | 28 |
| Hydraulic tank volume (L) | 80 |
| A-total length (mm) | 5960 |
| B-total width (mm) | 1960 |
| C-Total height (top of boom) (mm) | 1995 |
| D-total height (driving roof) (mm) | 2690 |
| E-Counterweight Ground Clearance (mm) | 700 |
| F-minimum ground clearance (mm) | 360 |
| G-tail turning radius (mm) | 1700 |
| H-track grounding length (mm) | 2000 |
| J-track length (mm) | 2560 |
| K-gauge (mm) | 1560 |
| L-track width (mm) | 1960 |
| M-track shoe width (mm) | 400 |
| N-turntable width (mm) | 1906 |
| O-Maximum excavation height (mm) | 5750 |
| P-Maximum unloading height (mm) | 3980 |
| Q-Maximum excavation depth (mm) | 3860 |
| R-Maximum vertical wall excavation depth (mm) | 3040 |
| S-Maximum excavation depth when excavating 2.5m horizontal plane (mm) | 3440 |
| T-Maximum excavation distance | 6170 |
| U-Maximum excavation distance at ground level (mm) | 6045 |
| V-minimum turning radius (mm) | 2380 |
| W-Maximum height at minimum turning radius (mm) | 4395 |
| X-distance from the center of rotation to the rear end (mm) | 1700 |
| Z-weight height (mm) | 1685(Hood) |
| A1-ground length (when transported) (mm) | 3370 |
| Stick length (mm) | 1630 |
| Boom length (mm) | 3000 |
