KEY SPECS
Operating weight: 21,900 kg
Bucket capacity: 1 m3
Engine power: 140 kW/2000 rpm
Configuration selling point
Equipped with a high-power engine, the machine delivers robust power, exceptional efficiency and energy savings. Additionally, it is equipped with a large-displacement main pump and a fully electronic control hydraulic system to achieve precise matching for optimal performance.
Ease of maintenance and operation comfort
The machine is equipped with a 10.1-inch intelligent touchscreen, offering multiple working mode selections, as well as features such as an electric heating air-suspension seat and a high-power air conditioning system. The machine provides a spacious maintenance area, allowing for easy access during inspections and maintenance.
Adaptability to diverse working conditions
It can be configured with a range of working devices such as rock buckets, ultra-powerful booms, rippers, and a variety of buckets to meet different working condition requirements.
PARAMETER
|
Parameter
|

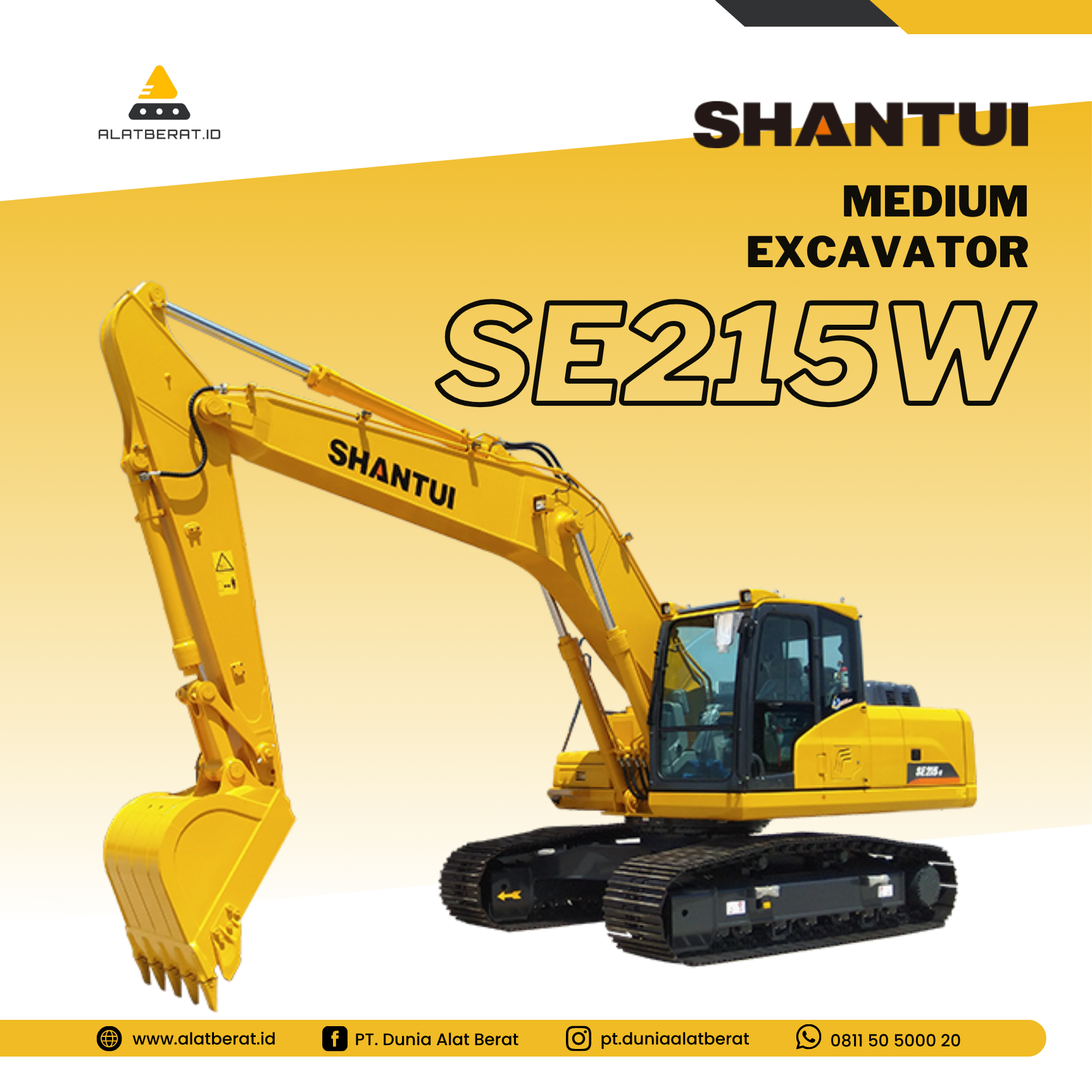

SE215W
|
|
Operating weight(kg)
|
21900
|
|
Engine power(kW/rpm)
|
140/2000
|
|
Bucket capacity(m)
|
1
|
|
External dimensions(mm)
|
9600*2980*3100
|
|
Bucket rod digging force(kN)
|
99/107
|
|
Bucket digging force(kN)
|
137/148
|
|
Rotating speed(r/min)
|
0-11
|
|
Travel speed(km/h)
|
3.7/5.3
|
|
Maximum digging height(mm)
|
10100
|
|
Maximum digging distance(mm)
|
9865
|
|
Maximum digging depth(mm)
|
6490
|
|
Emissions (Indicated as per international standards)
|
Eu stage IIIA
|
