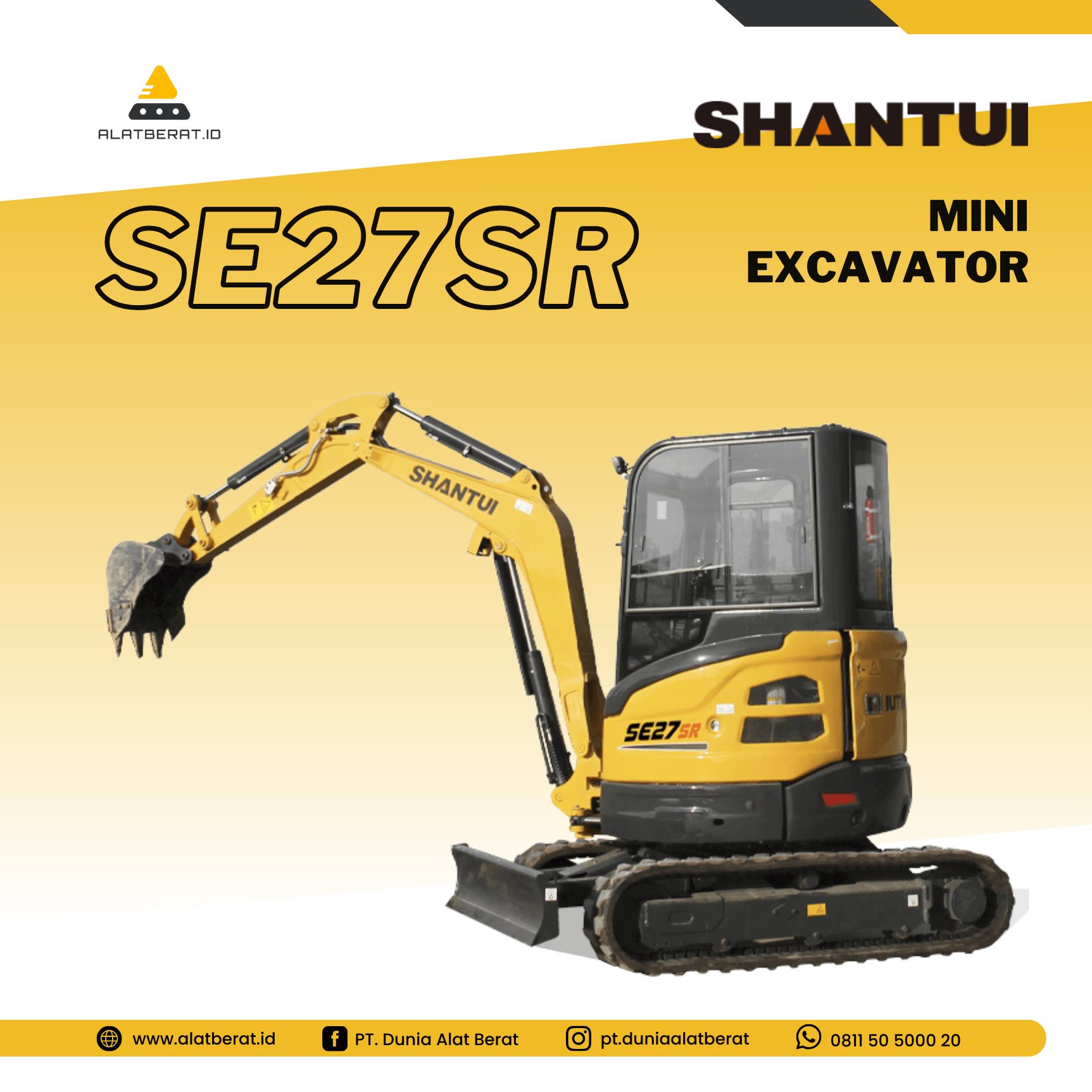

KEY SPECS
Operating weight: 2800 kg
Bucket capacity: 0.065 m3
Engine power: 14. kW/2400 rpm
Configuration selling point
An industry top-tier brand engine delivers robust power. The
machine is equipped with a load-sensitive control hydraulic system that
operates at high system pressure, ensuring exceptional efficiency, as well as
smooth and synchronized actions.
Ease of maintenance and operation comfort
The machine is equipped with the mechanical suspension seat,
the high-power hot air system, and the 7-inch LCD touchscreen. The
all-hydraulic pilot control features excellent maneuverability and allows for
easy maintenance.
Adaptability to diverse working conditions
The standard configuration includes zero-tail swing and boom
swing functions. The machine is equipped with several sets of optional
attachment pipelines to meet the requirements of diverse working conditions.
PARAMETER
|
Parameter
|
SE27SR
|
|
Operating weight(kg)
|
2800
|
|
Engine power(kW/rpm)
|
14.6/2400
|
|
Bucket capacity(m)
|
0.065
|
|
External dimensions(mm)
|
4200*1550*2480
|
|
Bucket rod digging force(kN)
|
14.8
|
|
Bucket digging force(kN)
|
24
|
|
Rotating speed(r/min)
|
0-10
|
|
Travel speed(km/h)
|
2.3/4.0
|
|
Maximum digging height(mm)
|
4390
|
|
Maximum digging distance(mm)
|
4680
|
|
Maximum digging depth(mm)
|
2800
|
|
Emissions (Indicated as per international standards)
|
EU stage V/T4F
|
