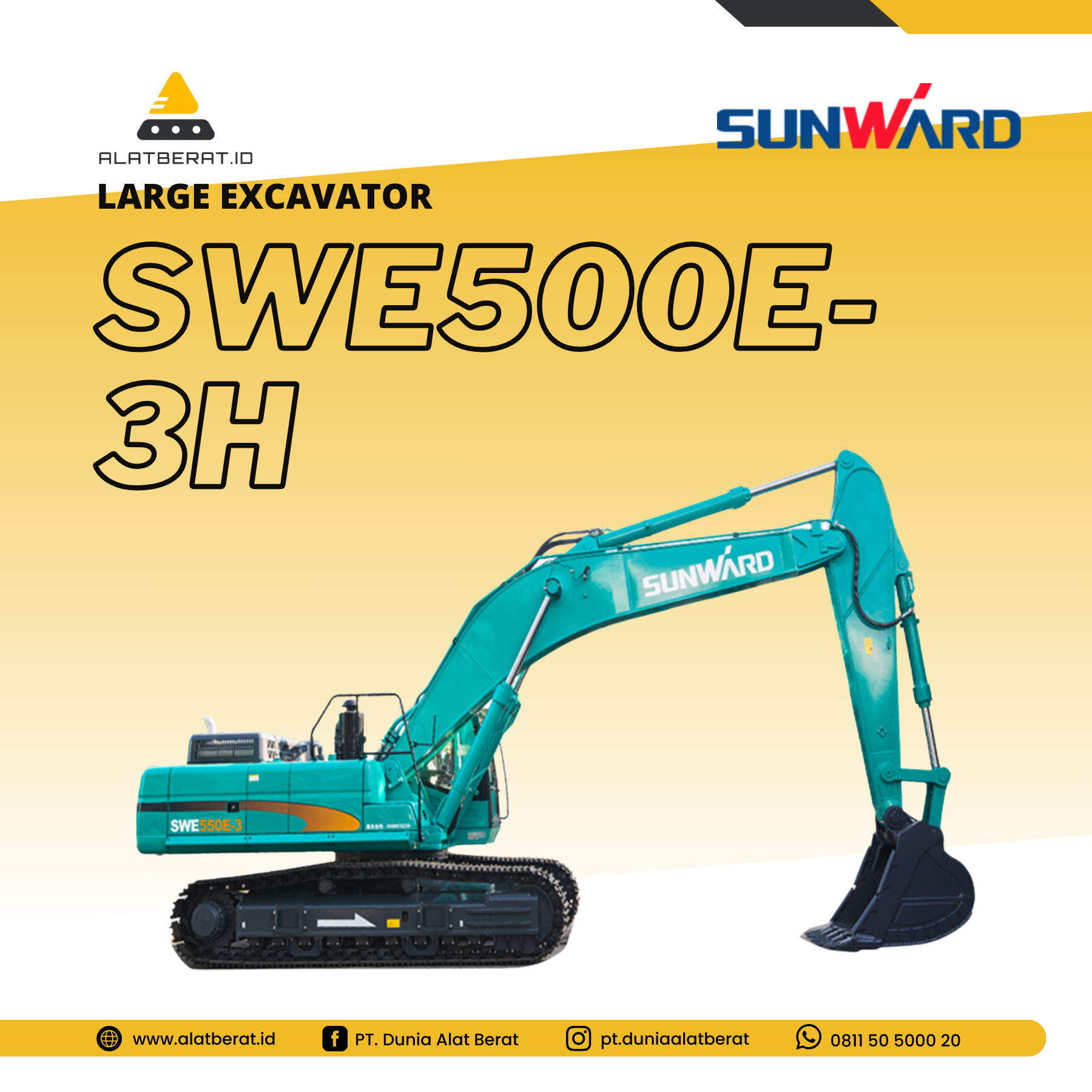

Distributor Alat Berat SUNWARD LARGE EXCAVATOR SWE500E-3H

Operating Weight:
49t(steel track)

Rate power:
261/2000

Bucket Capacity:
2.6 m

Karakteristik Kinerja

Operating Weight	t	49t(steel track)
Engine Power	kW/rpm	261/2000
Engine Brand		CUMMINS
Standard Bucket Capacity	m	2.6
Max. Digging Depth	m	6.85
ENGINE
Brand		CUMMINS
Model		QSM11
Type		Direct injection, 4-stroke,water-cooled, turbocharged, intercooled
Displacement	L	10.8L
Power	kW/rpm	261/2000
ELECTRIC SYSTEM
Nominal Voltage	V	24
Batteries	Ah	180
Alternator		24V-50A
Starter		24V-4.5kW
DRIVE
Max.Travel Speed (2nd/1st)	km/h	4.8/3.0
Gradeability		35
Max. Traction	kN	409
UNDERCARRIAGE
Undercarriage Width	mm	3340
Tumbler Distance	mm	4350
Track Length	mm	5365
Shoe Width	mm	600
DIMENSIONS
Counterweight Clearance	mm	1250
Tail Swing Radius	mm	3670
Shipping Length	mm	11450
Shipping Width	mm	3478
Shipping Height	mm	4000
WORKING RANGES
Max. Cutting Height	mm	10745
Max. Loading Height	mm	7300
Max. Digging Depth	mm	6850
Max. Vertical Wall Digging Depth	mm	6695
Max. Digging Reach	mm	11115
Max. Digging Reach (Ground)	mm	10890
Bucket Digging Force	kN	297
Stick Digging Force	kN	261
Ground Pressure	kPa	84.1
Swing Speed	rpm	8.6
CAPACITY
Fuel Tank	L	690
Hydraulic Oil Tank	L	375
HYDRAULIC SYSTEM
Main Pumps
Type		2 piston pumps
Displacement	L/min	2360
Working Pressure	MPa	32.4/34.3
