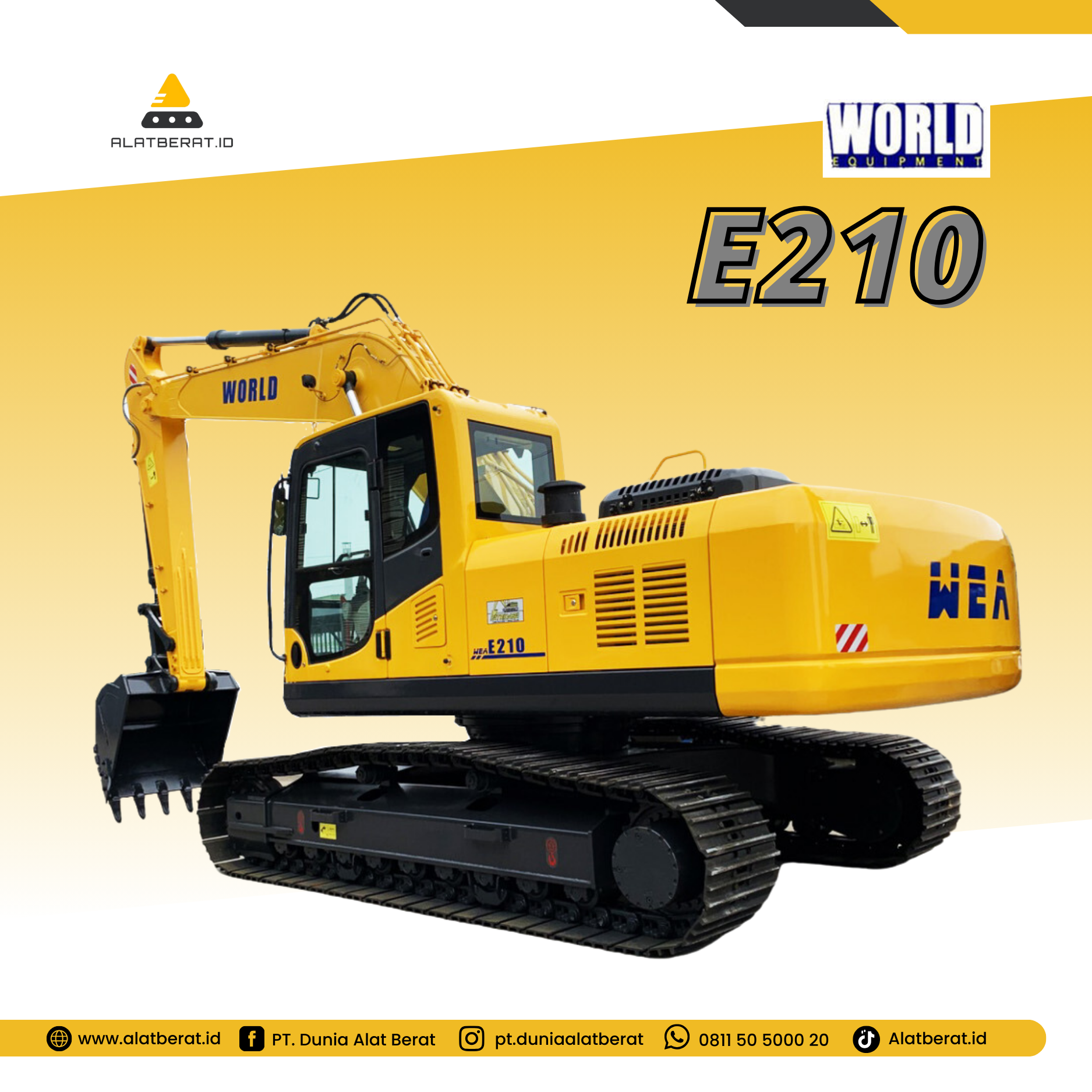

| MODEL | E210 |
| é‡ é‡(T) | Operating weight (T) | 21.5 |
| 铲斗容é‡(m3) | Bucket capacity (m3) | 0.93 |
| å‘åŠ¨æœºåž‹å· | Engine model | CUMMINS B5.9-C |
| 功率(kw/r/min) | Rated power (kw/r/min) | 133/2000 |
| 燃油箱容积(L) | Volume of fuel tank (L) | 350 |
| 行走速度(km/h) | Travel speed (km/h) | 5.2/3.5 |
| 回转速度(r/min) | Swing speed(r/min) | 9.8 |
| 爬å¡èƒ½åŠ›(%) | Max climbing degree° | 70 |
| 铲斗挖掘力(KN) ISO | Bucket digging force at power max (KN) ISO | 145 |
| 接地比压(KPa) | Average grounding pressure(KPA) | 46.5 |
| æ¶²åŽ‹æ³µåž‹å· | Hydraulic pump model | K3V112DT |
| 最大æµé‡ï¼ˆL/min) | Maximum flow （L/min) | 200*2 |
| 工作压力(MPa) | Setting pressure (MPa) | 34.3 |
| 液压油箱容积(L) | Volume of hydraulic tank (L) | 246 |
| A-总长(mm) | A Overall length (mm) | 9390 |
| B-总宽(mm) | B Overall width (mm) | 2780 |
| C-总高(动臂顶)(mm) | C Overall height （to top of boom）(mm) | 3040 |
| D-总高(驾驶顶)(mm) | D Overall height （to top of cab）(mm) | 3120 |
| E-é…é‡ç¦»åœ°é—´éš™(mm) | E Counterweight ground clearance (mm) | 1065 |
| F-最å°ç¦»åœ°é—´éš™(mm) | F Min. ground clearance (mm) | 466 |
| G-尾部回转åŠå¾„(mm) | G Tail swing radius (mm) | 2720 |
| H-履带接地长度(mm) | H Track grounding length (mm) | 3445 |
| J-履带长度(mm) | J Track length (mm) | 4260 |
| K-轨è·(mm) | K Track gauge(mm) | 2180 |
| L-履带宽度(mm) | L Track width (mm) | 2780 |
| M-履带æ¿å®½åº¦(mm) | M Track shoe width (mm) | 600 |
| N-转å°å®½åº¦(mm) | N Turntable width (mm) | 2700 |
| O-最大挖掘高度(mm) | O Max. digging height (mm) | 9275 |
| P-最大å¸è½½é«˜åº¦(mm) | P Max. dumping height (mm) | 6560 |
| Q-最大挖掘深度(mm) | Q Max. digging depth (mm) | 6515 |
| R-最大垂直å£æŒ–掘深度(mm) | R Max. vertical wall digging depth (mm) | 5915 |
| S-挖出2.5mæ°´å¹³é¢æ—¶çš„最大挖掘深度(mm) | S Max. digging depth for 2.5m horizontal plane (mm) | 6380 |
| T-最大挖掘è·ç¦» | T Max. digging reach (mm) | 9865 |
| U-在地平é¢çš„最大挖掘è·ç¦»(mm) | U Max.digging reach at ground level (mm) | 9680 |
| V-最å°å›žè½¬åŠå¾„(mm) | V Min. swing radius (mm) | 3630 |
| W-最å°å›žè½¬åŠå¾„时最大高度(mm) | W Max. height at min swing radius (mm) | 7670 |
| X-回转ä¸å¿ƒè‡³åŽç«¯éƒ¨çš„è·ç¦»(mm) | X Distance from swing center to rear (mm) | 2720 |
| Z-é…é‡é«˜åº¦(mm) | Z Height of counterweight (mm) | 2120 |
| A1-接地长度(è¿è¾“æ—¶)(mm) | A1 Grounding length (in transportation) (mm) | 4840 |
| æ–—æ†é•¿åº¦(mm) | Arm length (mm) | 2900 |
| 动臂长度(mm) | Boom length (mm) | 5700 |
