Main Technical Parameters

	MODEL		R220C/R218C	R216C/R214C	R212C/R210C
	Operating mass	kg	20000/18000	16000/14000	12000/10000
	Static linear load	N/cm	460/415	378/342	276/230
	Vibration frequency	Hz	30	30	30
	Vibration amplitude	Mm	2.0/1.0	2.0/1.01.8/0.9	1.8/0.9
	Centrifugal force	KN	360/220340/220	320/180290/160	270/140240/130
	Travel speed
	1st gear		2.0	2.0	1.8
	2nd gear		4.0	4.0	3.7
	3nd gear		10.5	10.5	9.7
	Grade ability		35	35	35
	Turning angle		35	35	35
	Ground clearance	mm	432	432	360
	Electrical voRage	v	24	24	24
	Turning radius	mm	7500	7500/7000	7000/6500
	Vertical oascillation		8	8	8
	Tyre size		23.1-26	23.1-6	17.5-25
	Overall length	mm	5820	5820	5640
	Overall width	mm	2280	2278	2258
	Overall height	mm	3000	3000	2970
	Vibration round width	mm	2100	2100	2100
	Drum diameter	mm	1600	1600	1400
	Drum rim thickness	mm	46/40	32/24	24
	Wheelbase	mm	3160	3160	3080
	Diesel model		D6114ZG6B	YC6108ZGYC6108G	YC6108G
	Diesel power	Kw	132	105/85	85
	Diesel speed	r/min	2000	2000	2000
	Fuel tank capacity	L	180	180	180
	Hydraulic tank capacity	L	150	150	150

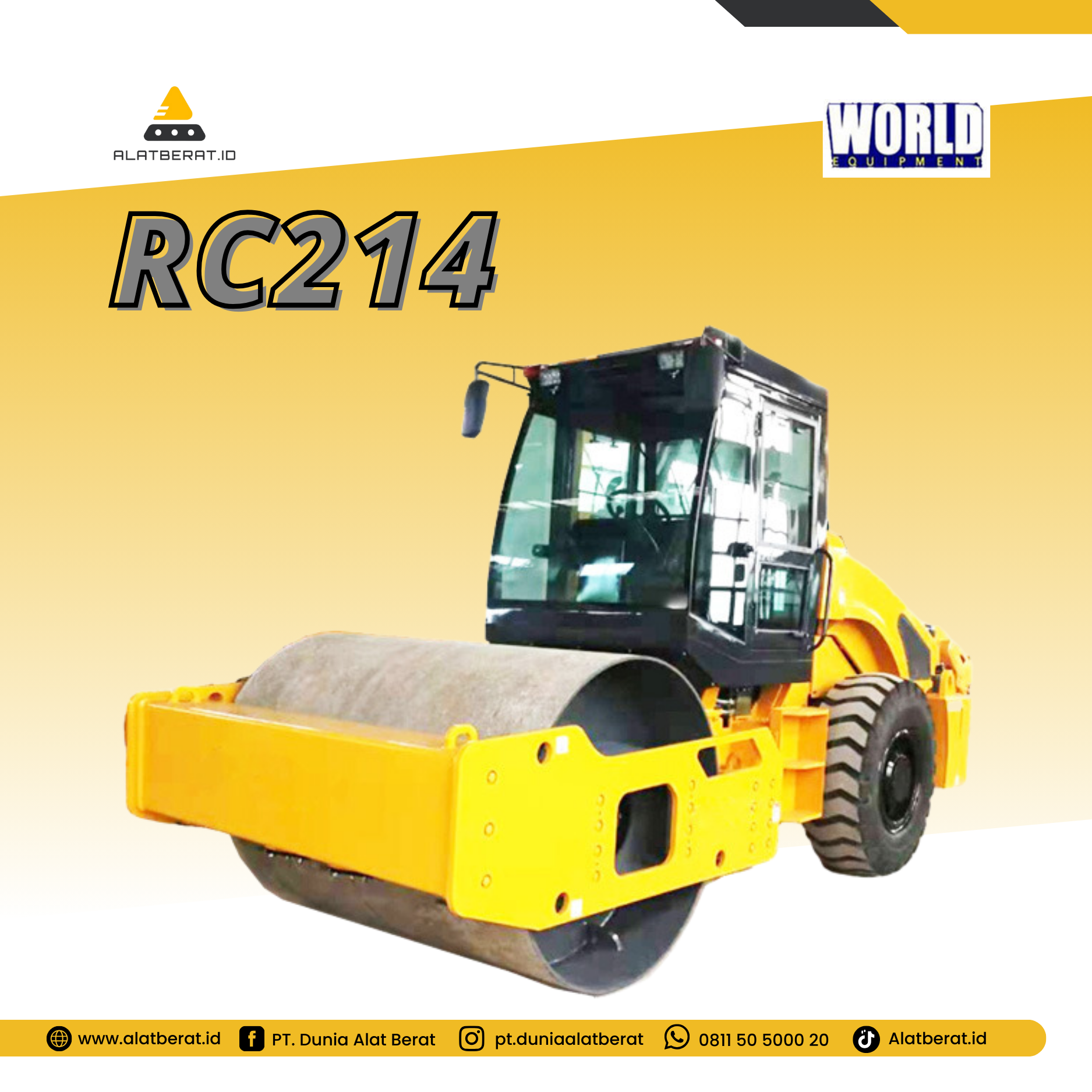

(Single drum dual-amplitude vibratory roller)

R220C R218C R216C

R214C  R212C  R210C

R220CR218CR216CR214CR212CR210C

R220CR218CR216CR214CR212CR210C Roller getaran tugas berat mempengaruhi gaya sentrifugal yang kuat dan beban linier statis yang besar, Mereka cocok untuk bahan non-kohesif, seperti tanah berpasir, kerikil, batu pecah, tambalan batu dan tanah yang sedikit kohesif , kerikil, batu pecah, tambalan batu dan tanah sedikit kohesif, dirancang untuk konstruksi pondasi besar seperti jalan raya kelas tinggi, tambang, bandara, pelabuhan, kereta api dan kawasan industri dll.

Mechanical travel drive, double amplitude, hydraulic vibration and steering with optimal function/price ratio and reliable performance.

Reliable D6114 or YC6108 diesel engine for convenient operation and maintenance.

Two sets of brake devices, a hand brake and foot pedal brake, assure the machines safety and dependability.

Spacious and comfortable cab mounted on top quality rubber damping elements.

World advanced technology is adopted for the hydrhaulic vibration technology, high in reliability, simple and convenient in maintenance, and low in cost.

Equipped with padfoot or removal padfoot as option.
