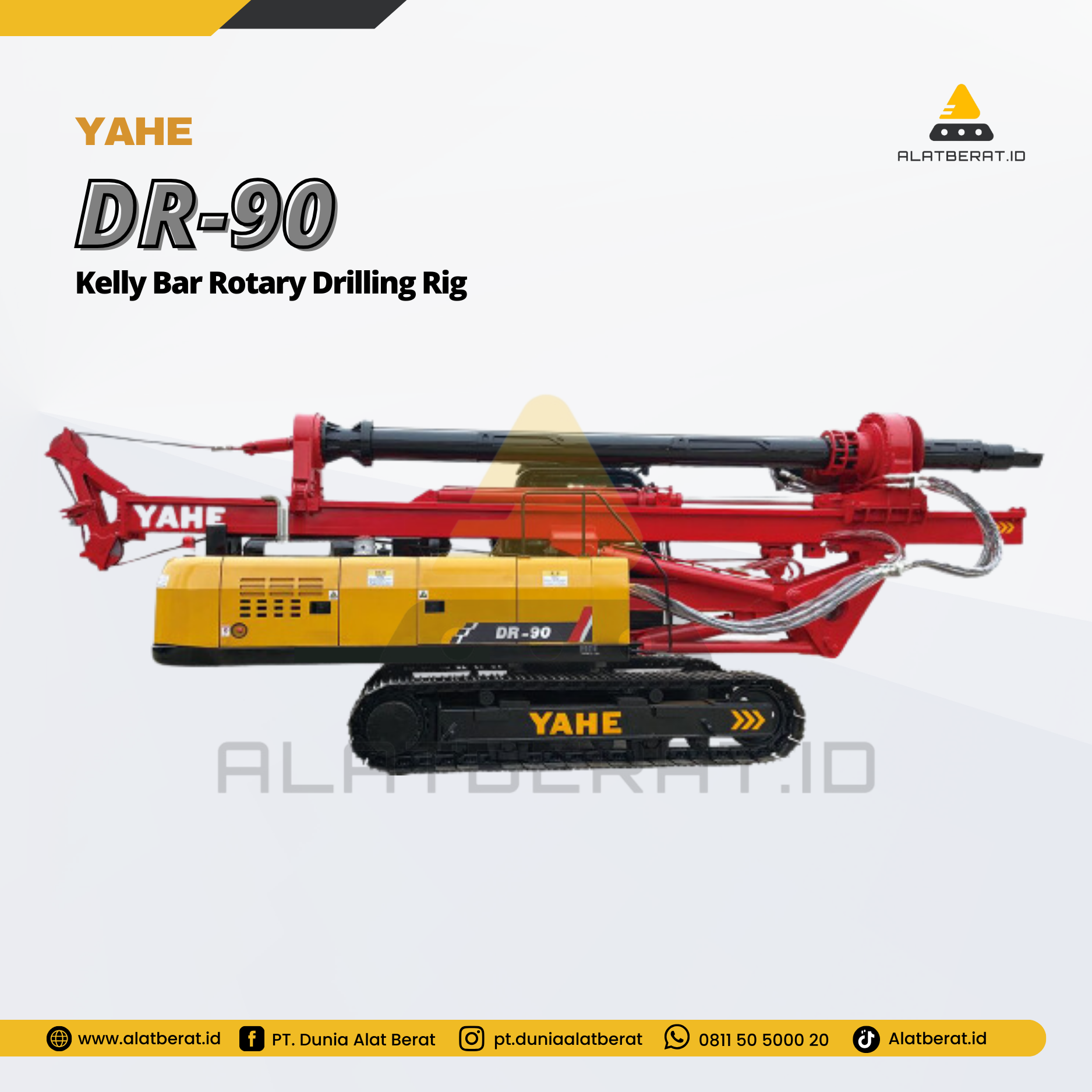

This drilling rig represents the smallest tonnage Kelly bar rotary drilling rig available. Its overall structure is highly compact and designed with small-scale engineering projects in mind. The rig boasts a maximum drilling depth of 15 meters and supports drilling diameters ranging from 450 to 1500 millimeters. It can be paired with a variety of drill types to accommodate diverse construction needs, including tasks such as drilling and excavation in sandy and clayey soils, as well as surface drilling through concrete.

Weighing between 15 to 19 tons, this rig is equipped with a crawler chassis and a front dozer blade, allowing it to handle certain earthmoving tasks during construction. Depending on the soil's softness at the construction site, an optional anti-sagging cylinder can be installed. The drill mast includes an auxiliary hoist to assist in lifting construction equipment. The hydraulic power head drives the drill rod, offering adjustable drilling speeds suitable for various soil conditions. This rig has secured quality management system certificates such as CE, ISO, SGS, and others.

In summary, this compact drilling rig is well-suited for small-scale engineering construction projects, offering versatility and performance in drilling and excavation operations.
