Bucket Capacity: 0.15-0.7 m

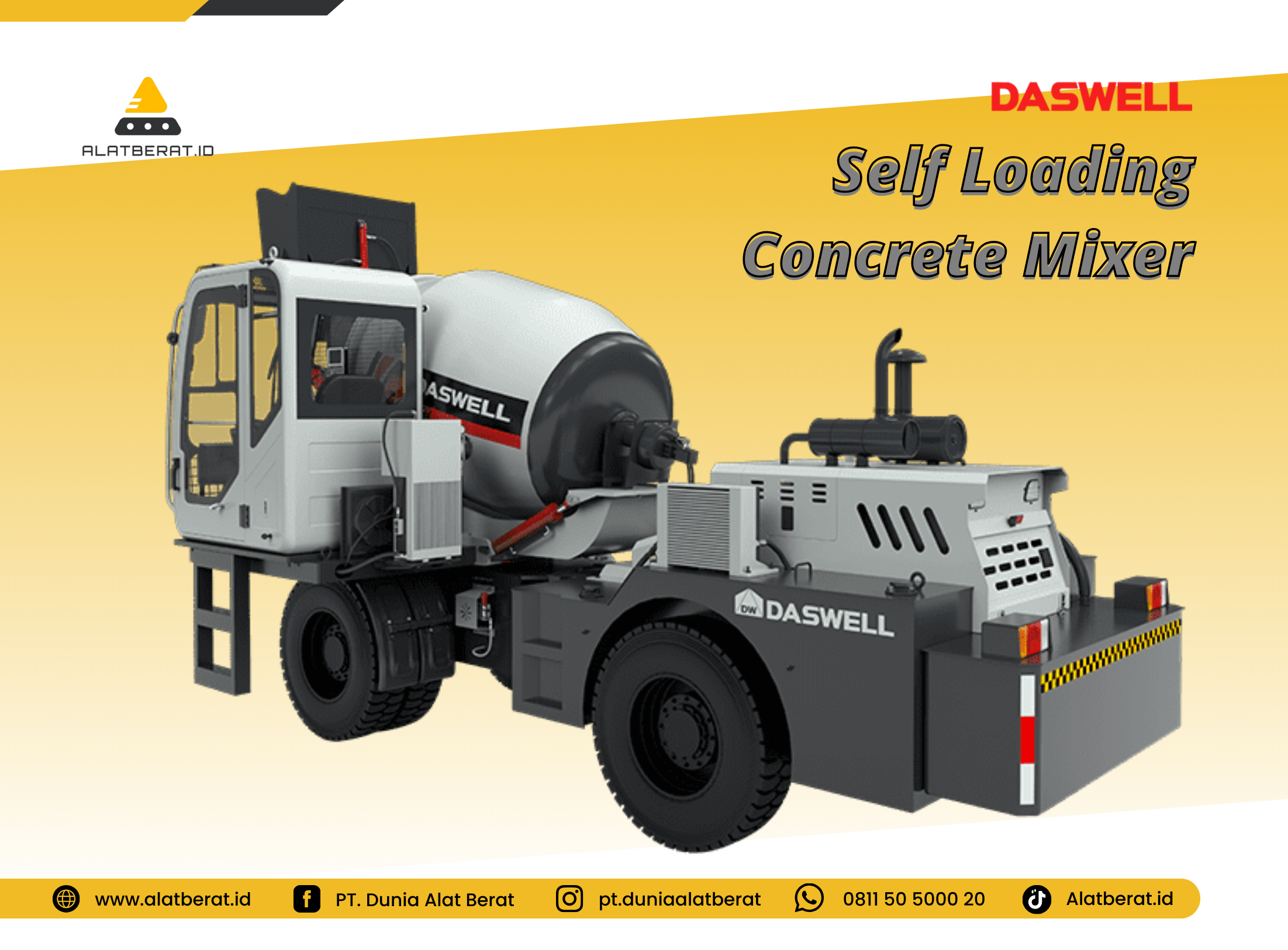

Description of self loading mixer

The small self-loader concrete mixer has the characteristics of narrow body, short wheelbase, small turning radius and other personalized design, and has strong advantages in the working environment of limited height, width and length. The mixing tank can be rotated 270, and the machine can be unloaded on all sides without moving, and only one person can operate it during operation.

Power TypeDiesel Engine

Wide Application Area: Dry concrete mixing, plastic concrete, and fluid concrete construction sites for the industrial and civil construction engineering construction departments such as construction engineering, municipal engineering, highways, bridges, urban and rural roads, prefabricated factories, small prefabricated component factories, etc.

Advantages & Characters

• Its stirring is uniform, the stirring blade is fan-shaped, and the contact area with the medium is large during stirring;
• The nozzles are set in multiple rows, and the water volume is uniform and adjustable;
• The mixing drum of the self-loading mobile concrete mixer has a compact structure and good sealing performance, set a ash baffle at the feeding port to prevent the backflow of water mist;
• The setting of the watershed at the bottom of the box ensures that there is no dead angle in the device.
• The mining mixing drum has advanced performance, stable product quality, uniform mixing and rapid discharge.
• Independent operation to complete the functions of loading, mixing, transportation and unloading.
• The self-loading concrete mixer for sale replaces the loader, mixer, transport vehicle, generator set and other functions; it also has its own water tank, external suction pump, etc. The multi-angle 270-degree rotating discharge is suitable for various regional environments.
• Easy to operate, you can learn to operate in a few hours, and only two people can complete all the work.
• Cost-effective, the self-loading concrete mixer machine saves labor costs and time, and the self-loading concrete mixer truck price is reasonable.

Factory price of self-Loading Concrete Mixer

Daswell focuses on the production of high-quality machinery and equipment, we produce two types of automatic mixers, flat-mouth and drum-type, with complete categories and excellent quality. The price of the machine is also different according to the different parameters such as machine configuration and drum capacity. The smallest model of Daswell newest self-loading concrete mixer price sells for around $10,000. The above selling price is a reference price, and the specific cost will vary according to your production output, budget, configuration and other specific information. Daswell provides you with high-quality products and also pays attention to service. Welcome to consult us for the quotation. And our technicians will find the most suitable model and configuration for you. Daswell sells the self-loading transit mixer with factory price, reasonable self-loading transit mixer price and prompt delivery, contact us to get the latest price list.

Self-loading concrete mixer working principle

Self-loading transit concrete mixer, the vehicle itself has a bucket with similar functions to the loader, which can load concrete raw materials such as sand, stones, cement, etc. Then, the raw material is lifted into the mixing drum. It can also be equipped with a gravimetric scale to weigh aggregates. In addition, the vehicle is also equipped with a hydraulically driven water pump to pump water. Match with a uniquely designed mixing blade, the automatic mobile self-loading concrete mixer for sale can mix concrete and transport it to the work site and then unload it.

The performance of mini self-loading concrete mixer

In the process of road construction in rural areas, the self-loading concrete truck mixer can not only automatically produce the required road construction finished concrete, but also unload materials while transporting. The 270 rotating function of the mixing tank is very practical, and it can unload concrete at a height of 1 meter, which is convenient and efficient, so it is favored by the majority of small and medium-sized projects.

In addition to road construction in rural areas, automatic feeding mixer trucks can also play a significant role in other rural infrastructure projects, ranging from trenching, slope protection, and foundation construction to building bridges, houses, and tunnels. Concrete engineering, it can always bring enough concrete, which is convenient and cost-effective, and has good efficiency and effect.

Services provided for concrete mixer truck

Pre-Sale Service

Before purchase, Daswell business manager will provide you with technical consults about the concrete self-loading mixer truck, including payment terms, self-loading concrete mixer truck quotes, delivery time and other information.

Recommend the most suitable self-loading mixer machine model for you according to your engineering needs, and provide you with the most cost-effective choice.

Provide you with auto loading concrete mixer factory pictures, factory videos, technical information, etc.to help you understand the working principle of the self-loading mixer

After-Sale Service

We are responsible for the transportation of the product, and will deliver the product to the designated location safely and quickly.

We will provide customers with technical training and operation instructions, free installation services.

If you have any problems during using time, we will provide you with 24-hour online consulting services and dispatch engineers for on-site technical guidance.

For customers who purchase Daswell equipment, the follow-up spare parts will be provided at the original price, and the wearing parts will be guaranteed within one year. For specific after-sales service, please consult the sales manager.

FAQ

Q: Where is the self-loading concrete mixer truck suitable for?

A: Self-mixing concrete truck are suitable for various construction sites. Whether it is highway slope protection, farmland irrigation and canals, sand and gravel yard mixing and unloading, the contractors all use self-loading concrete machine.

Q: How long does it take in total from feeding to discharging?

The cycle time from feed to discharge was approximately 12 minutes.

Q: How to load the container?

A: A self-loading mobile diesel concrete mixer needs to be equipped with a 40-high cabinet.

Q: Whats the specification of self-loading concrete mixer truck?

A: Daswell Machinery provides SLDM700 (0.7 cubic meters) to SLDM5000 (5 cubic meters) self-loading cement mixer.

Technical Data:

Model		SLDM1200	SLDM1800	SLDM2600	SLDM3500	SLDM4000	SLDM5500	SLDM6500
Mixer drum	Mixer drum (L)	1700	2740	3000	4740	6000	7800	9000
	Output capacity (m)	1.2	1.8	2.6	3.5	4	5.5	6.5
	Mixer drum rotation speed (rpm)	13	13	13	13-20	18-21	20	16.5
Vehicle	Overall dimension (mm)	7300*1800* 3450	7300*2650* 3750	7860*2750* 4100	7730*2700* 4180	7640*2870* 4750	8450*3100* 4580	8450*3050* 4830
	Wheel base (mm)	2560	2600	2800	2650	2480	3350	2850
	Curb weight (kg)	4920	6500	7000	7661	9000	11200	12520
	Drive form	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter	Torque converter
	Max. speed (km/h)	30	30	30	30	35	42	40
	Max. gradeability ()	30	30	30	30	45	45	45
	Min. turning radius (mm)	4700	5300	5300	5300	4800	6200	4800
	Min. ground clearance (mm)	280	380	380	380	330	380	350
Diesel Engine	Power	YUNNEI 55KW	YUCHAI 78KW	YUCHAI 78KW	YUCHAI 91KW	YUCHAI 91KW	XINCHAI 110KW	WEICHAI 92KW
Oil tank	Volume (L)	16	16	16	16	16	16	16
Water supply system	Water tank (L)	400	500	500	620	780	860	1465
	Water supply	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay	Time relay
