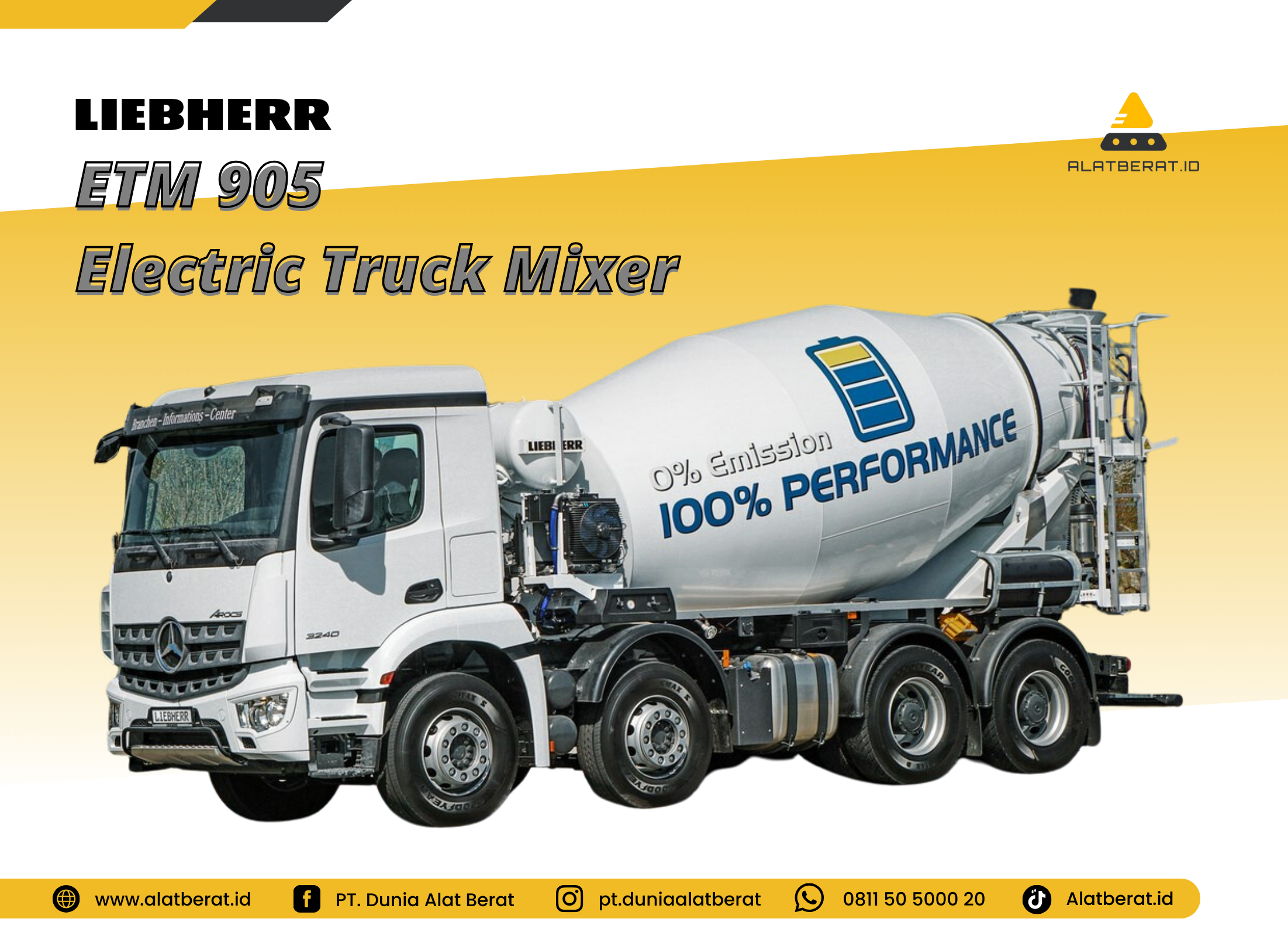

ETM 905
Electric truck mixer
Unloading on site without exhaust emissions. The ETM truck mixer series makes this possible thanks to the electric drum drive.
| Water capacity |
10.50 m |
| Geometric drum capacity |
16.00 m |
| Nominal filling * |
9 m |
| Water capacity ** |
10.50 m |
| Geometric drum capacity |
16.00 m |
| Assembly weight Lightweight *** |
4,135 kg |
| Operating voltage |
650 VDC |
*
Nominal filling in compacted mixed concrete.
**
Measured in accordance with DIN 459-1 at min. 2 drum rotations per minute. The given values for capacity and water volume only apply to a horizontally aligned mixer frame. A deflection of the frame during loading is not taken into account here and may negatively affect the water volume under certain circumstances. The real maximum filling capacity with concrete depends on the consistency and the rheological characteristics of the concrete. The topology of the road and the driveability also influence the maximum loading volume.
***
Weight details for basic unit with chassis power take-off (PTO), incl. 2 extension chutes, compl. assembled/ready for operation, deviations +/- 5%.
