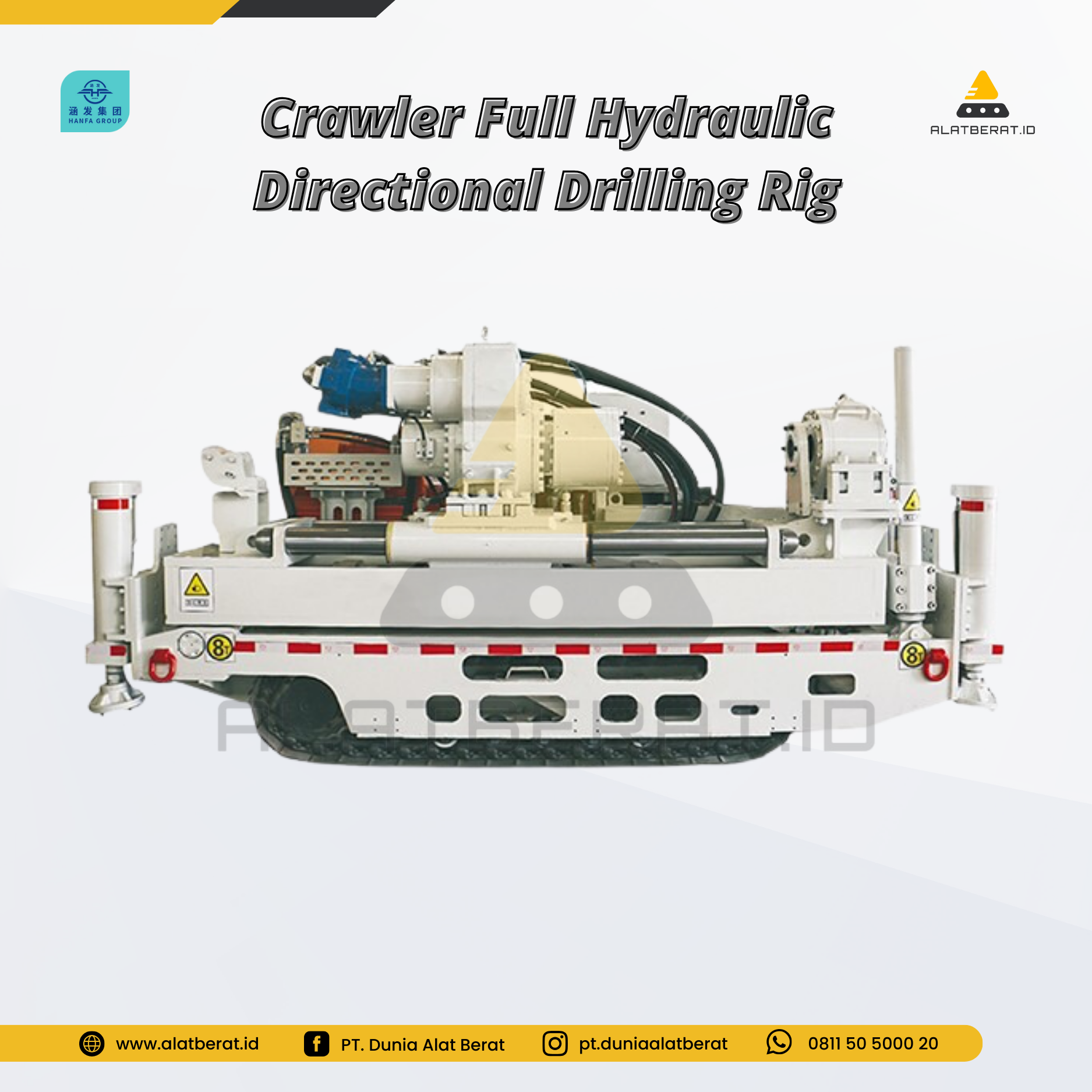

Distributor Hanfa Crawler Full Hydraulic Directional Drilling Rig

Specifications

	Test items	Unit	Parameter
Host	Preset pressure	MPa	26
	Limited Data	L/min	280
	Rated torque	Nm	17000-3500
	Rated speed	r/min	50-150
	Maximum speed	r/min	200
	Propulsion	kN	250
	Advance speed	mm/min	1500
	Pull-out force	kN	250
	Lifting speed	mm/min	1500
	Advance itinerary	mm	1200
	Drilling depth	m	1500
	Final hole diameter	mm	120/203
	Hole diameter	mm	120/203/253
	Drilling angle	.	-10-+20
	Drill pipe diameter	mm
	Anchoring force	kN	100
	Water pressure	MPa	1-1.5
	Minimum water supply	L/min	50
	Noise	dB(A)	100
	Dimensions	mm	4200x1600x2000(20)
	Quality	kg	15000
Rig Pumping Station	Preset pressure	MPa	29
	Limited Data	L/min	285
	Motor model	kw	YBK3-315M-4
	Rated voltage	-	660/1140
	Rated current	V	132
	Effective volume of fuel tank	-	450
Drilling Rig Traveling Mechanism	Way of walking	kw	crawler
	Work pressure	MPa	26
	Work flow	L/min	120
	Walking speed	m/min	40
	Gradeability	(*)	20
	Track shoe width	mm	300
