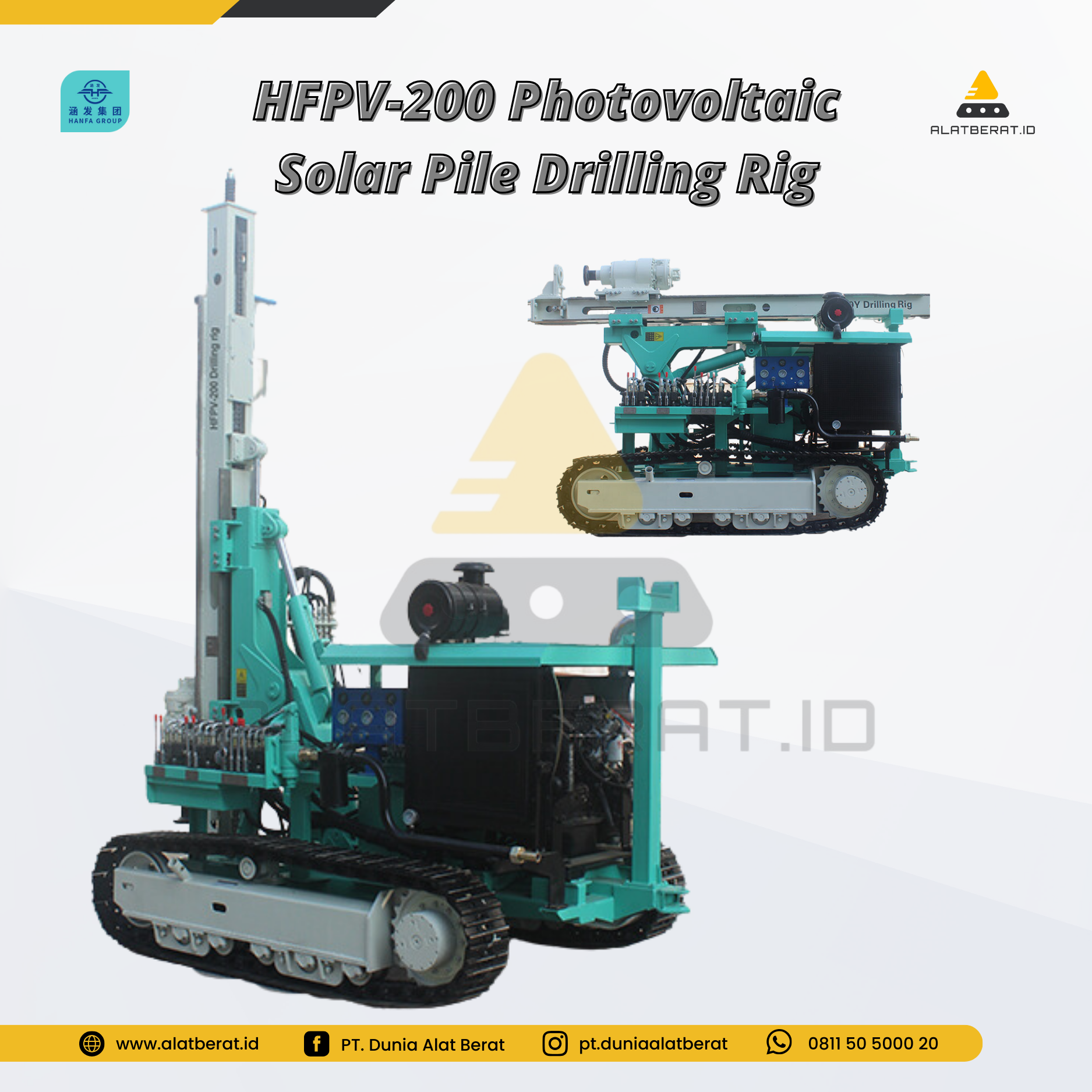

Hanfa HFPV-200 Photovoltaic Solar Pile Drilling Rig

Distributor Alat Berat Hanfa Drilling Rig di Indonesia

Specifications

Bore diameter(hammer)90-310mm
Bore depth20-120m
Air consumption10-26m/min
Air pressure0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Pipe diameter76mm/89mm
For rockF=6-20
Bore diameter(screw)Max 400mm
Bore depth0-30m
Screw pipe diameter130-400mm
Once promotion2000mm
Skid pitch100
Swinging angle of skidLeft and right total 40
Rotation speed0-70r/min
Host power56Kw
Climb ability35
Dimension(L*W*H)4460*1950*2460(mm)
weight4360Kg
Walk speed0-2.5km/h
