SPECIFICATION

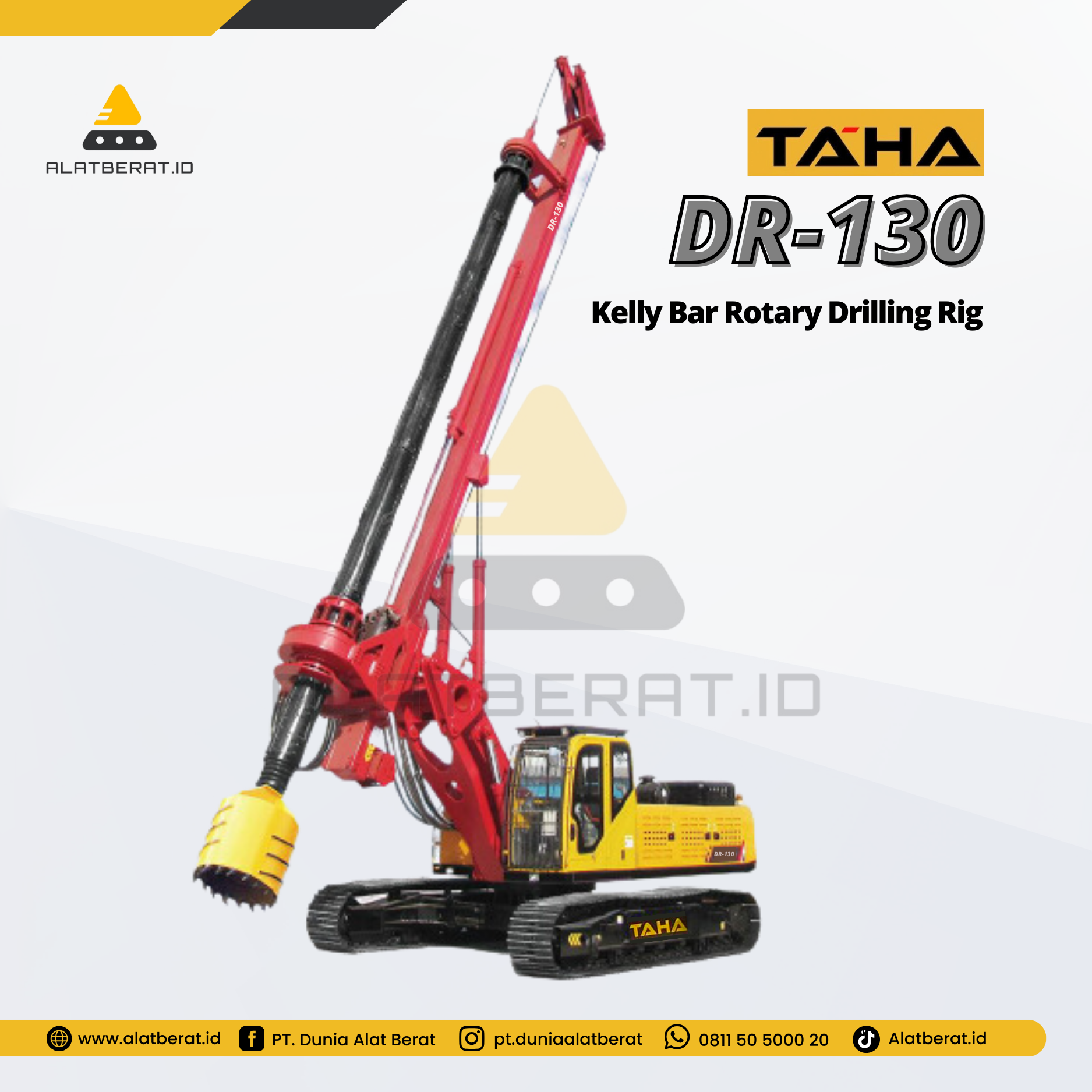

Model                                                                          DR-130

Machine weight (t)                                                    26

Maximum drilling depth (m)                                     30

Drilling diameter (mm)                                              500-1600

Engine brand                                                              YUCHAI/WEICHAI/Cummins (optional)

Engine rated power (kW/rpm)                                126-151 kW

Max. working pressure of hydraulic

system main pump (Mpa)                                        30

Max. lifting force of the

pressurization system (KN)                                      150

Max. lifting force of the

auxiliary winch (KN)                                                  15

Overall width of working state (mm)                     2800

Overall length of transport status (mm)                11500

Overall width of transport status (mm)                 2800

Overall height of transport status (mm)                3400
